Chain swing Nest RH170D (f.h. 1,5 m).

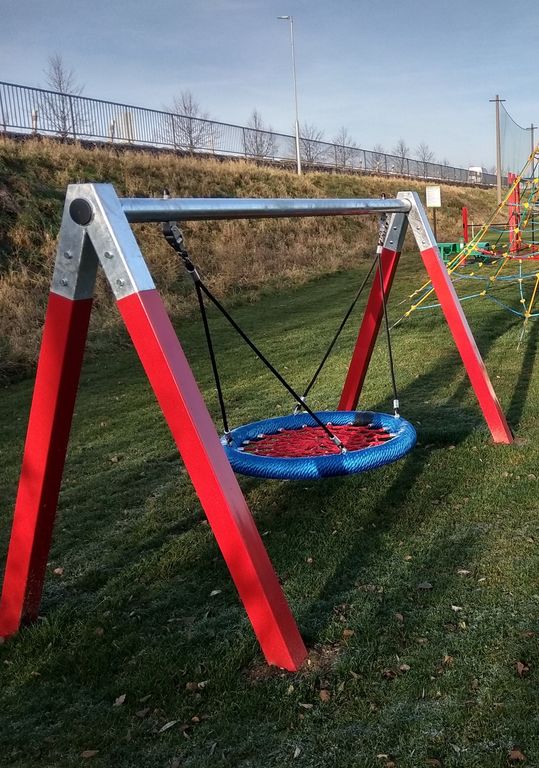

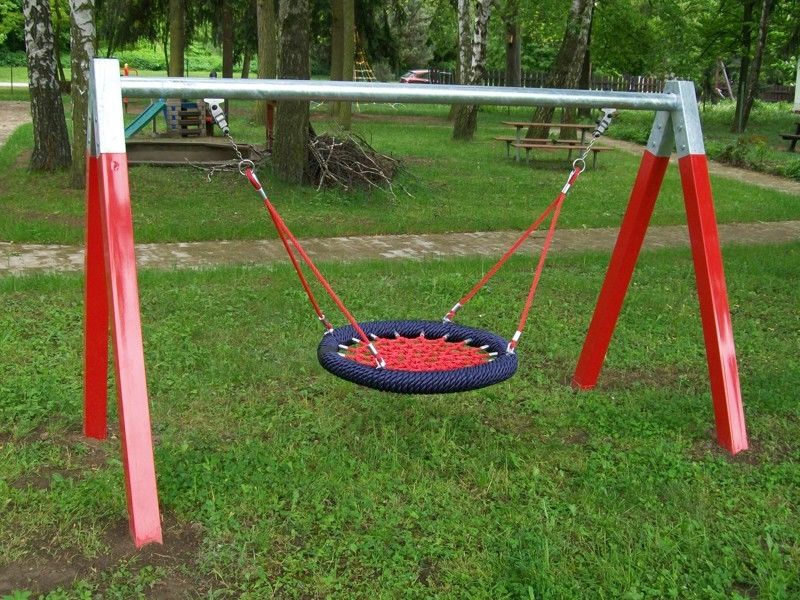

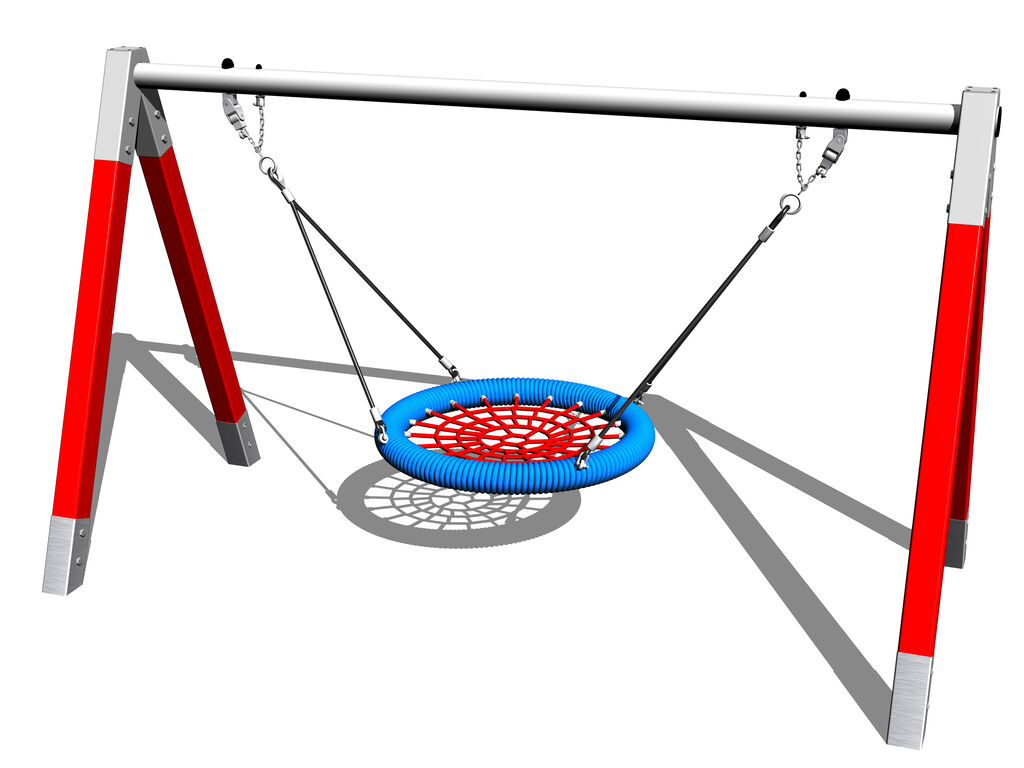

Chain swing Nest RH170KR - Red (f.h. 1 m)
Product code: RH-170KR-10
Chain swing Nest RH170K - metal (f.h. 1 m) - there is no need for a fall zone up to the height of 1 m, a grass surface is enough. We offer three color variants of the support structure - red, blue and brown. More information
Choose the color option
Technical specifications
| Product code: | RH-170KR-10 |
|---|---|
| Weight: | 136.25 kg |
| Recommended age: | 2-15 years |
| Free fall height: | 1 m |
| Load capacity: | 270 kg |
| Maximum number of users: | 5 |

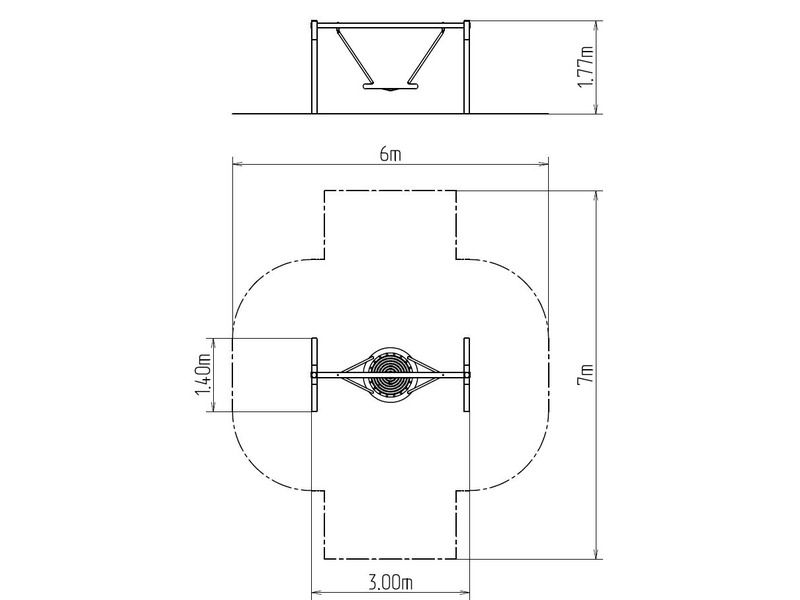

| Measurements: | 3 x 1.4 x 1.77 m |
| Required area for assembly: | 6 x 7 m |
| Fall damping surface: | Grass surface |
The support structure of the swing is made from structural steel (steel profile 100 x 100 mm), which is zinc coated and KOMAXIT powder coated according to the RAL colour chart and is fixed in a concrete bed.
The swing is hung on a metal girder using galvanized chains. The "Bird's Nest" seat is made from polypropylene rope with heavy duty fibres. The hanging ropes are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core). All fastening material is galvanized or stainless steel.
No comments or questions Chain swing Nest RH170KR - Red (f.h. 1 m) regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
Platform [41.0 kB, DWG]
Platform [46.0 kB, JPG]
