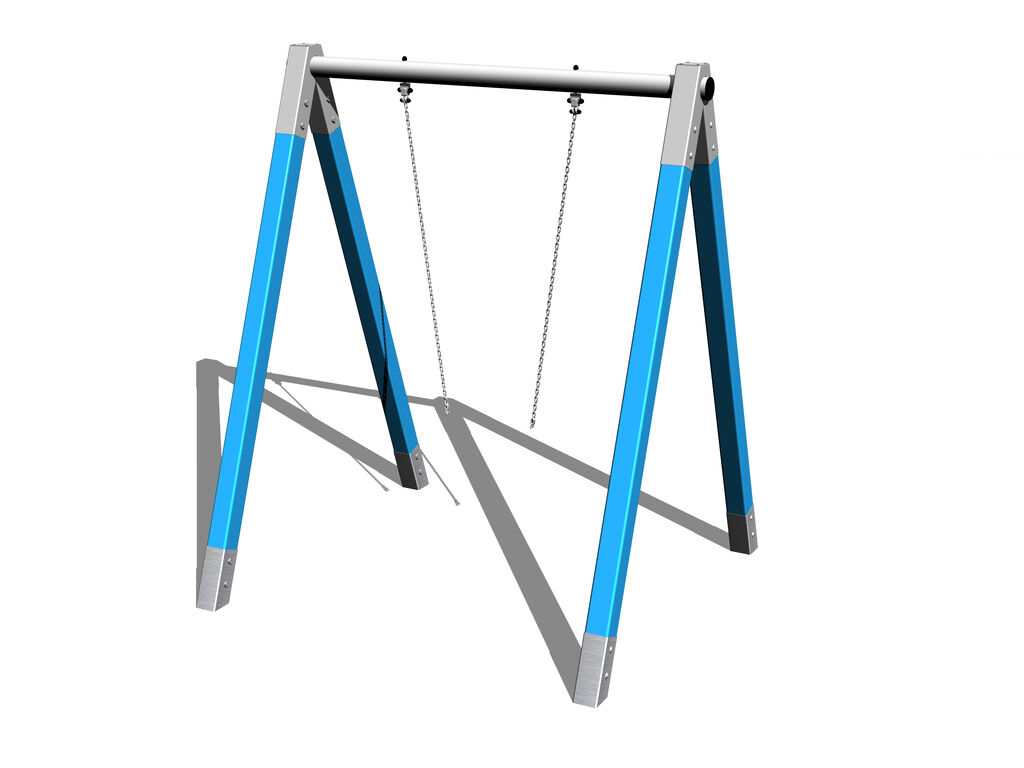

Chain swing RH101KB - Blue (f.h. 1,5 m)

Products from the same category:

Previous Next

Product code: RH-110KB-15

Seats and hinges are not part of the swing. It is necessary to buy a seat (1 piece) of your choice and curtains (2 pieces). Chain swing RH110K - metal (f.h. 1,5 m) - we offer three color variants of the support structure - red, blue and brown. More information

Choose the color option

Chain swing RH101KR - Red (f.h. 1,5 m)

Chain swing RH101KW - Brown (f.h. 1,5 m)

We advise to buy more pieces

Product - SB-002-10

BABY seat SB002 (including chains, f.h. 1 m)

Request price

BABY SB002 seat – fall height 0.95 m, supplied with 2 chains, without joint hangers. The hangers may be purchased separately here .

Product - SN-001D-15

Normal seat SN001D (including chains)

Request price

Normal seat SN001 – aluminum, covered with a soft and comfortable rubber. Supplied with 2 chains (1,8 m), without joint hangers. The hangers may be purchased separately here .

Product - HZ-001

Swing joint HZ001 (for Baby and Normal seat)

Request price

Swing joint HZ001 for Baby and Normal seat, price for 1 piece.

Technical specifications

Product code:	RH-110KB-15
Weight:	140.19 kg
Recommended age:	2-15 years
Free fall height:	1,5 m
Load capacity:	54 kg
Maximum number of users:	1

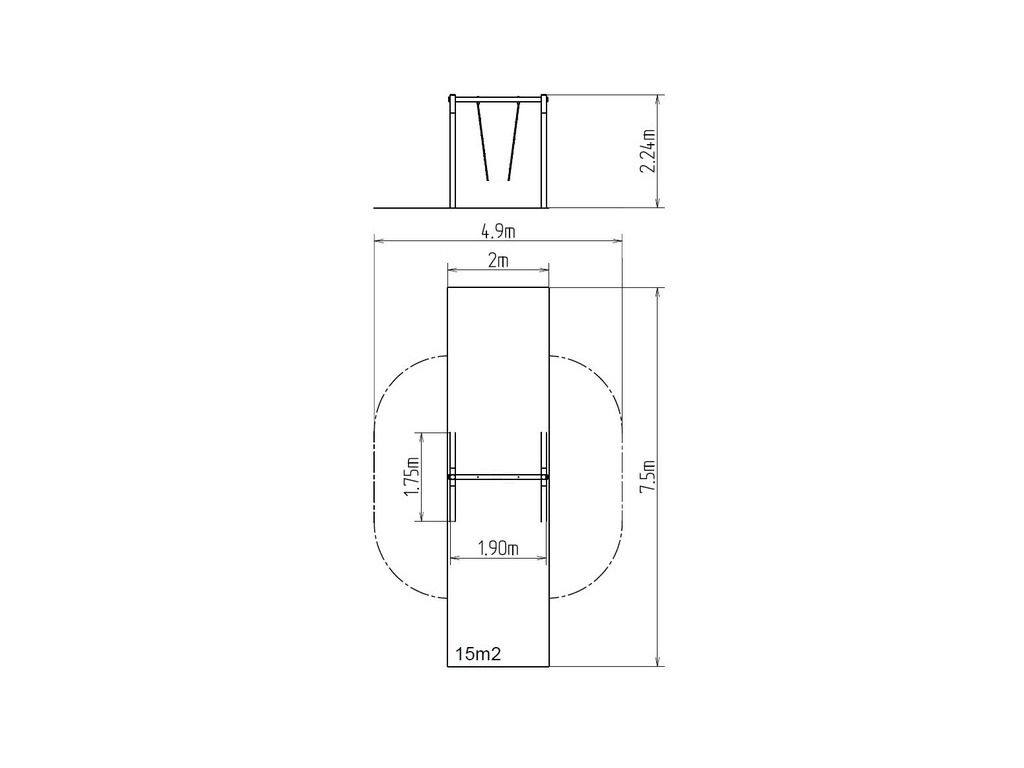

Measurements:	1.9 x 1.75 x 2.24 m
Required area for assembly:	4.9 x 7.5 m
Fall damping surface:	Rubber or gravel 15 m²

The support structure of the swing is made from structural steel (steel profile 100 x 100 mm), which is zinc coated and KOMAXIT powder coated according to the RAL colour chart and is fixed in a concrete bed.

The swing is hung on a metal girder using galvanized chains. All fastening material is galvanized or stainless steel.

Insert new comment

No comments or questions Chain swing RH101KB - Blue (f.h. 1,5 m) regarding this product. Do not hesitate to ask.

Technical sheet [170 kB, PDF]
