Quadralupe chain swing RH410KR - red (f.h. 1,5 m)
Product code: RH-410KR-15
Seats and hinges are not part of the swing. It is necessary to buy a seat (4 pieces) of your choice and curtains (8 pieces). Quadralupe chain swing RH410K - metal (f.h. 1,5 m) - we offer three color variants of the support structure - red, blue and brown. More information
Choose the color option
We advise to buy more pieces
Swing joint HZ001 (for Baby and Normal seat)

Technical specifications
Product code: | RH-410KR-15 |
---|---|
Weight: | 245.77 kg |
Recommended age: | 2-15 years |
Free fall height: | 1,5 m |
Load capacity: | 216 kg |
Maximum number of users: | 4 |

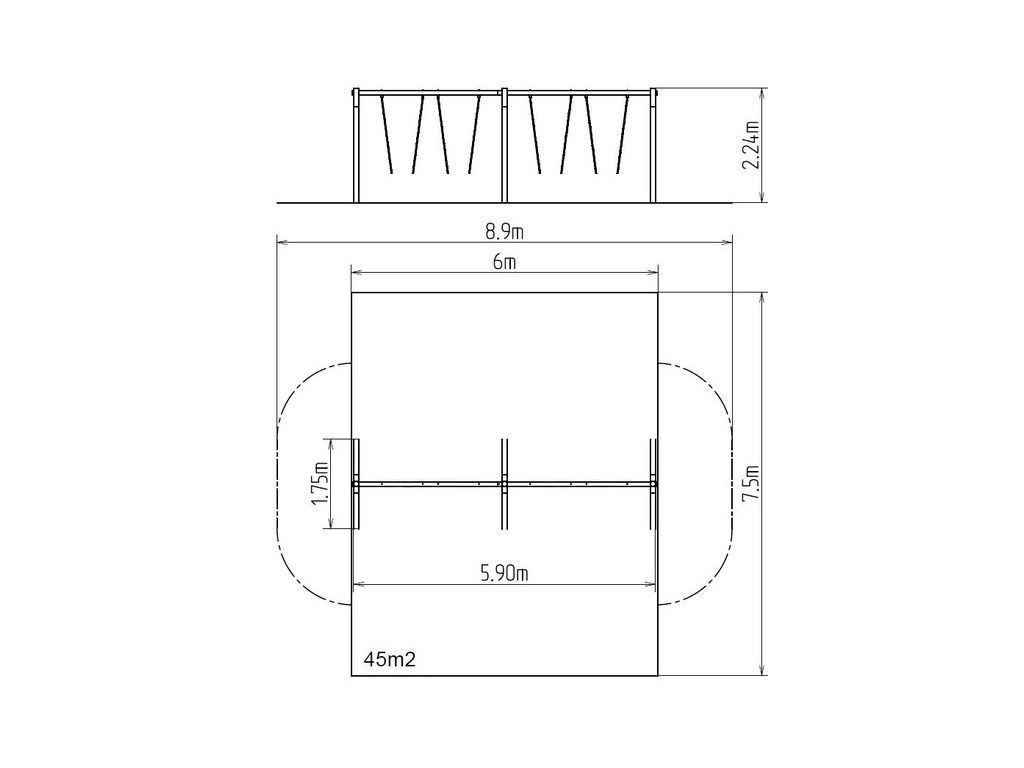

Measurements: | 5.9 x 1.75 x 2.24 m |
Required area for assembly: | 8.9 x 7.5 m |
Fall damping surface: | Rubber or gravel 45 m2 |

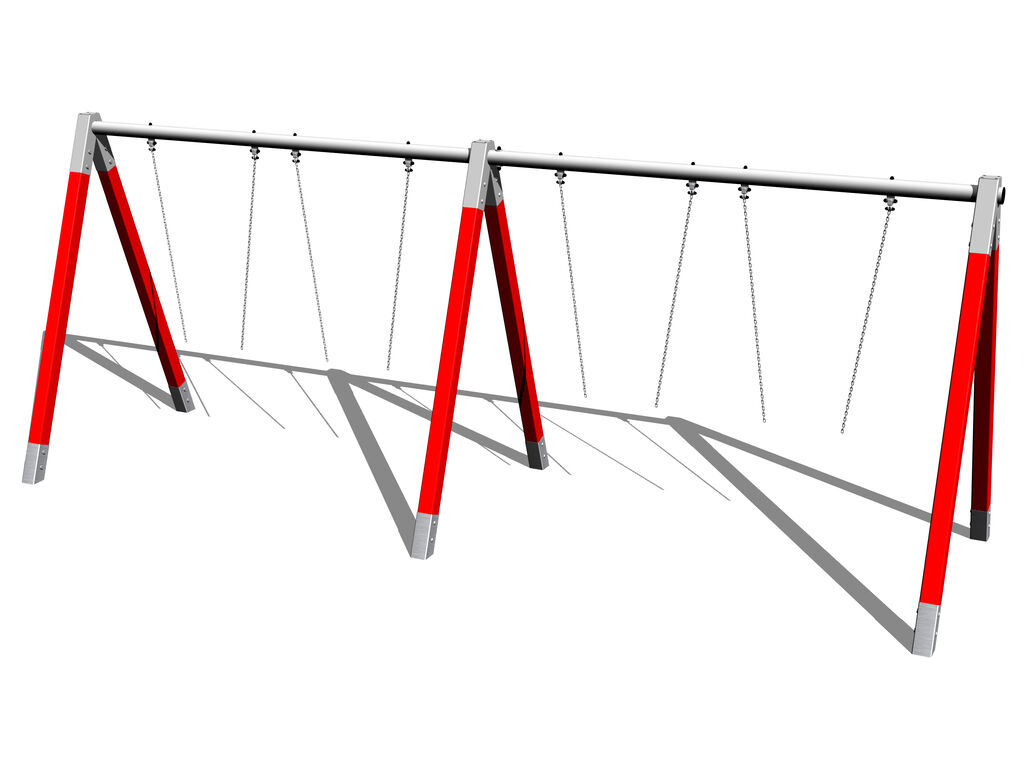

The support structure of the swing is made from structural steel (steel profile 100 x 100 mm), which is zinc coated and KOMAXIT powder coated according to the RAL colour chart and is fixed in a concrete bed.
The swings are hung on a metal girder using galvanized chains. All fastening material is galvanized or stainless steel.
No comments or questions Quadralupe chain swing RH410KR - red (f.h. 1,5 m) regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
