| Product code: | KO-253KS-15 |
|---|---|
| Recommended age: | 2-10 years |
| Free fall height: | 1,5 m |
| Load capacity: | 270 kg |
| Maximum number of users: | 5 |

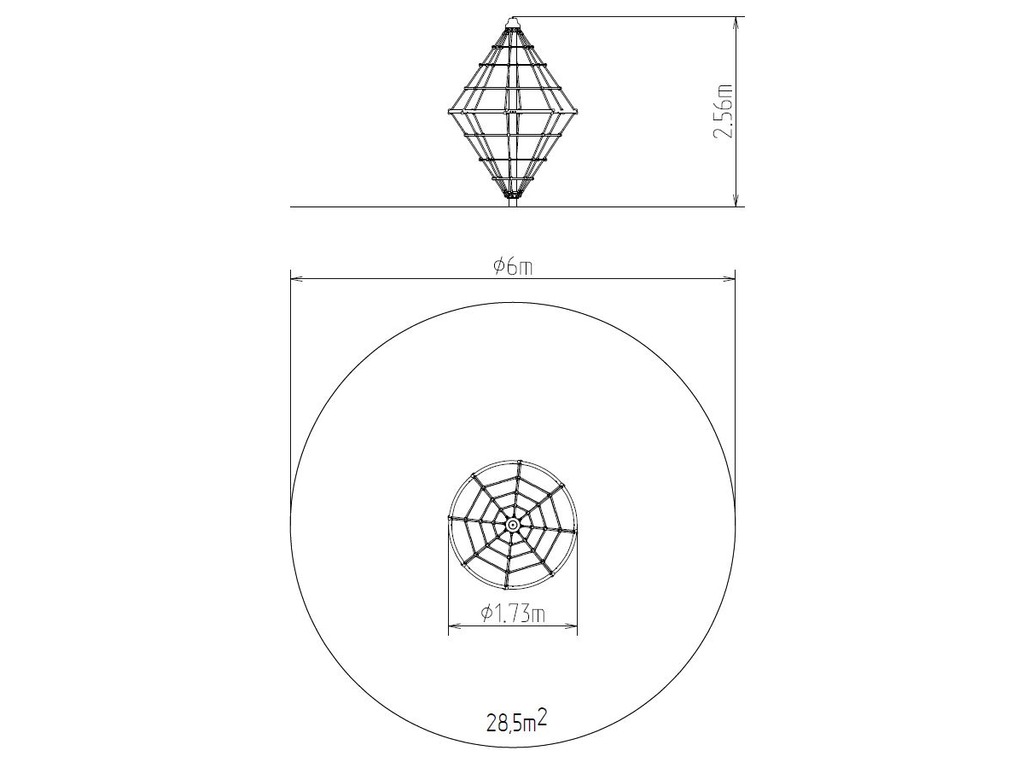

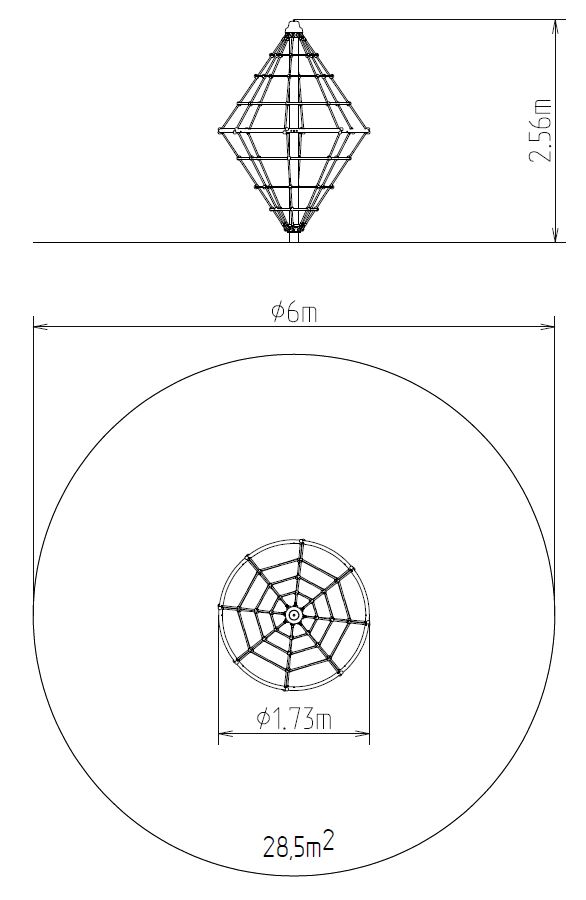

| Measurements: | 1.73 x 1.73 x 2.55 m |
| Required area for assembly: | 6 x 6 m |
| Fall damping surface: | Rubber or gravel 28.5 m2 |

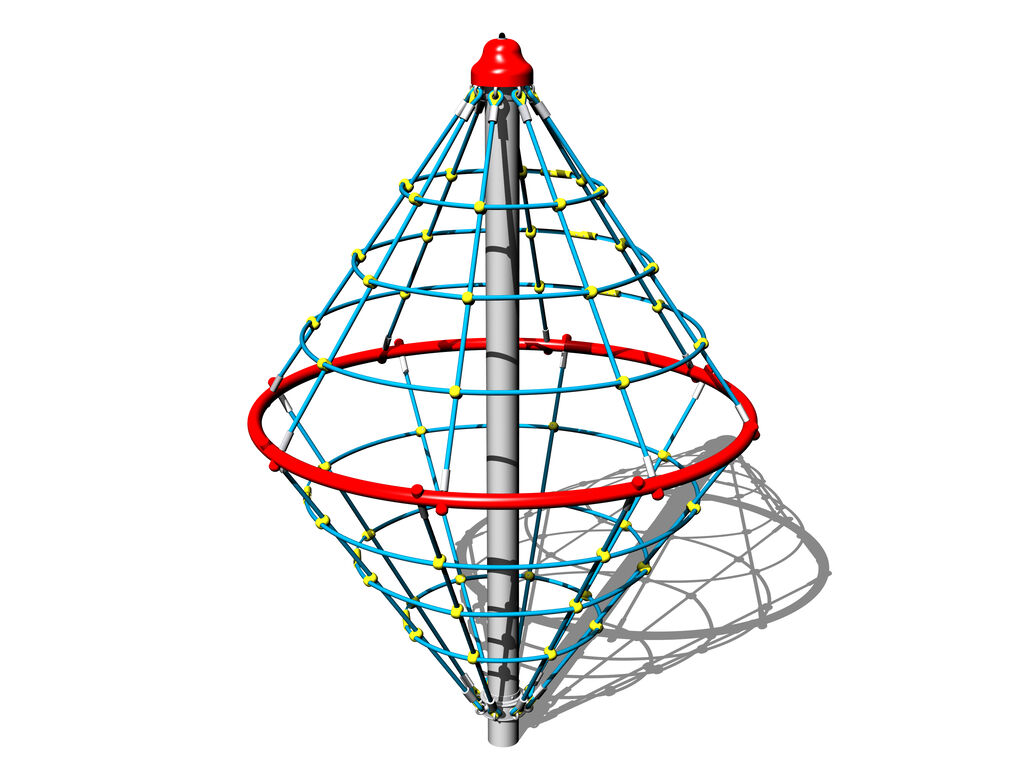

The support pillar of the rope merry-go-round is made from structural steel with a diameter of 114 mm, it is zinc coated and KOMAXIT powder coated according to the RAL colour chart and fixed in a concrete bed. All other metal units are zinc coated and KOMAXIT powder coated according to the RAL.
The ropes are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic or aluminium joints. All fastening material is galvanized or stainless steel.
No comments or questions Rope merry-go-round KO253K - metal regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
Platform [301.0 kB, DWG]
Platform [47.0 kB, JPG]
