UNIVERSAL 4U601KW - brown
Product code: 4U-601KW-10

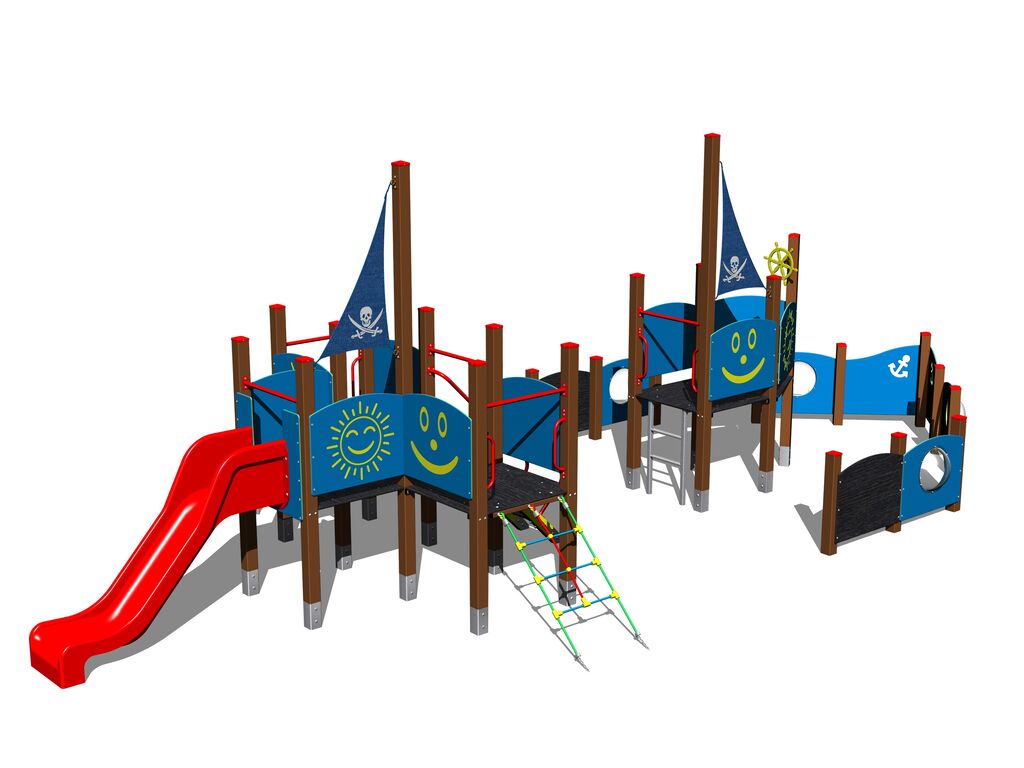

6x tower, slide, 2x post with a flag, sloping net access, sloping climbing wall, helm made from HDPE, 10x barrier from HDPE, 2x barrier with anchor, 2x drawing board, 4x barrier with an aperture, ladder, sloping ramp with steps and metal handles. More information
Choose the color option
|Recommended age:||2-15 years|
|Free fall height:||1 m|
|Load capacity:||1404 kg|
|Maximum number of users:||26|

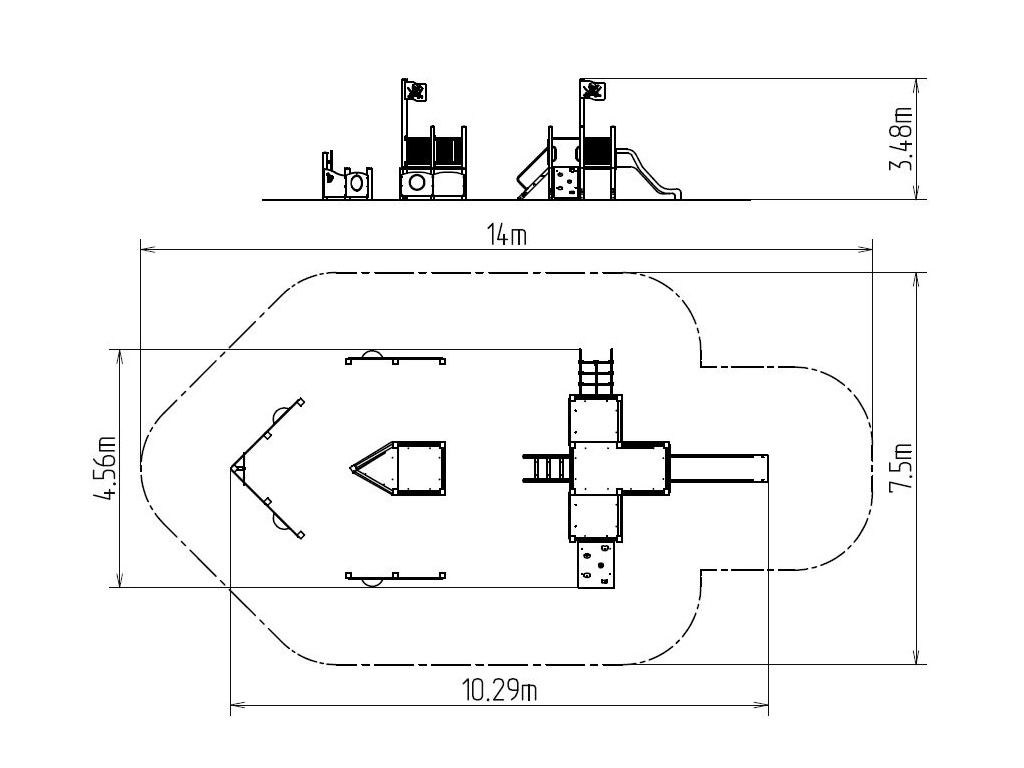

|Measurements:||10.29 x 4.56 x 3.48 m|
|Required area for assembly:||14 x 7.5 m|
|Fall damping surface:||Grass surface|
The support structure of the tower unit is made of structural steel (metal profile 100 × 100 mm) which is protected against corrosion by zinc coating, resulting in a very prolonged service life of the workout elements, and coating with baked paint KOMAXIT according to the RAL colour system. All other metallic elements are also zinc coated and treated with baked paint KOMAXIT according to the RAL colour system.
The slide is made from fibreglass. The surfaces of the slide, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The ropes and nets are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic or aluminium joints. The platforms and the sloping climbing wall are made from water-proof plywood designed for external environment or from HDPE should the client require. The climbing holds are made from the mix of silica sand and epoxy resin, which ensures long life, colour preservation as well as skin friendly surface. All fastening material is galvanized or stainless steel.
No comments or questions UNIVERSAL 4U601KW - brown regarding this product. Do not hesitate to ask.
- Technical sheet [170 kB, PDF]
- Platform [200.0 kB, DWG]
- Platform [57.0 kB, JPG]
