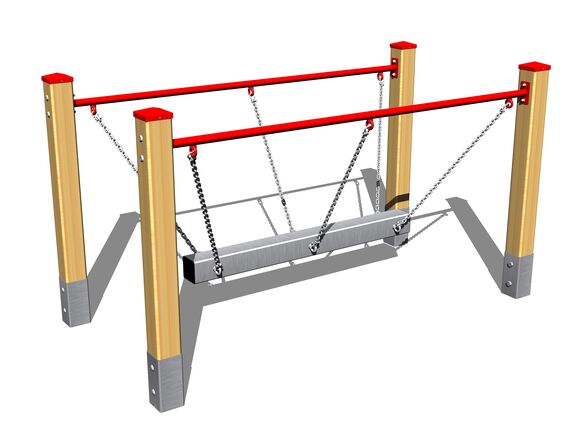

Chain bridge RL101D (f.h. 1 m)
Product code: RL-101D-10
Chain bridge RL101D (f.h. 1 m) - there is no need for a fall zone up to the height of 1 m, a grass surface is enough. More information
Technical specifications
Product code: | RL-101D-10 |
---|---|
Weight: | 60.04 kg |
Recommended age: | 3-15 years |
Free fall height: | 0,4 m |
Load capacity: | 54 kg |
Maximum number of users: | 1 |
Measurements: | 2 x 1 x 1.12 m |
Required area for assembly: | 5 x 4 m |
Fall damping surface: | Grass surface |
The chain bridge support structure is made from thick glued wooden supports. This solution ensures maximum protection against cracking, which is common for products made from solid wood. The wooden supports are impregnated and coated with a triple layer of lacquer, which meets the terms and conditions of the EN71/3 Standard (safe for children's toys). The structures are anchored into the ground in steel plates, which are protected against corrosion by hot-dip galvanizing and fixed in a concrete bed. The anchors are fastened to the play unit with bolts and their structure ensures that they are not in direct contact with the ground. All other metallic elements are also zinc coated and treated with baked paint KOMAXIT according to the RAL colour system. The wobbly beam is hung on a metal support using galvanized chains. All fastening material is galvanized or stainless steel.
No comments or questions Chain bridge RL101D (f.h. 1 m) regarding this product. Do not hesitate to ask.
- Technical sheet [170 kB, PDF]
- Platform [463.0 kB, DWG]
- Platform [32.0 kB, JPG]
