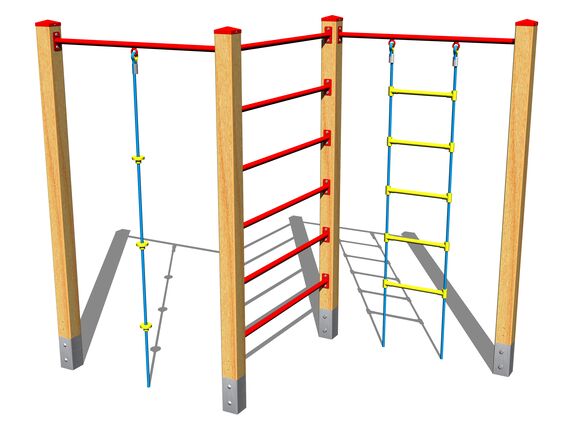

Climbing set SS303D
Technical specifications
Product code: | SS-303D-20 |
---|---|
Weight: | 86.3 kg |
Recommended age: | 3-15 years |
Free fall height: | 2 m |
Load capacity: | 162 kg |
Maximum number of users: | 3 |
Measurements: | 2.82 x 1.21 x 2.12 m |
Required area for assembly: | 7 x 5.5 m |
Fall damping surface: | Rubber or gravel 38.5 m2 |
The climbing set support structure is made from thick glued wooden supports. This solution ensures maximum protection against cracking, which is common for products made from solid wood. The wooden supports are impregnated and coated with a triple layer of lacquer, which meets the terms and conditions of the EN71/3 Standard (safe for children's toys). The structures are anchored into the ground in steel plates, which are protected against corrosion by hot-dip galvanizing and fixed in a concrete bed. The anchors are fastened to the play unit with bolts and their structure ensures that they are not in direct contact with the ground. All other metal units are zinc coated and KOMAXIT powder coated according to the RAL.
The climbing net and the rope ladder are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and they are connected with plastic joints. All fastening material is galvanized or stainless steel.
No comments or questions Climbing set SS303D regarding this product. Do not hesitate to ask.
- Technical sheet [170 kB, PDF]
- Platform [47.0 kB, DWG]
- Platform [37.0 kB, JPG]
