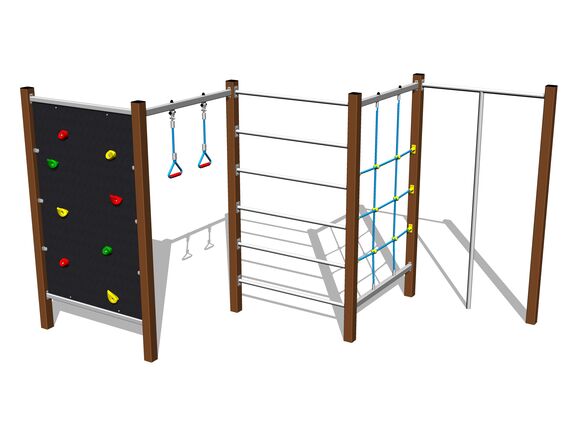

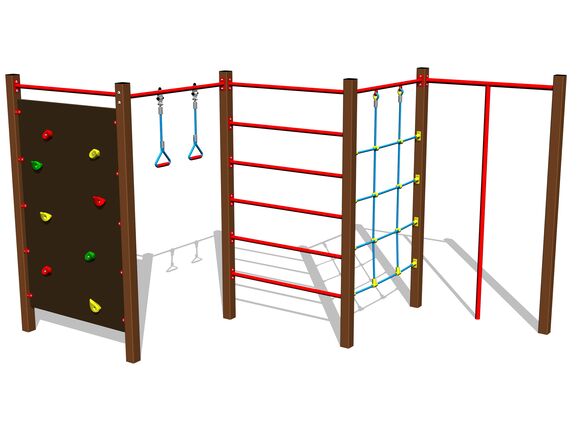

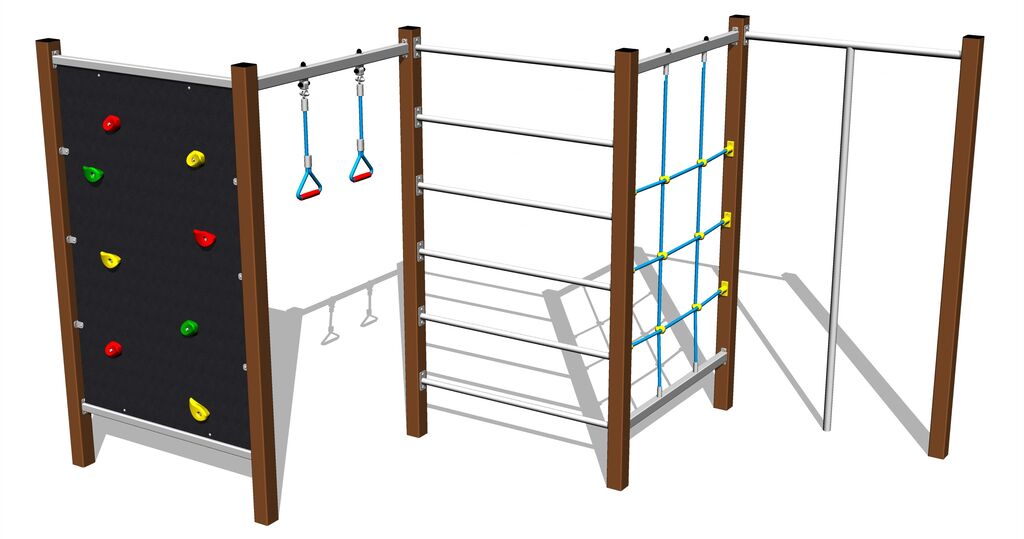

ltClimbing set SS501KW - brown
Product code: SS-501KW-20

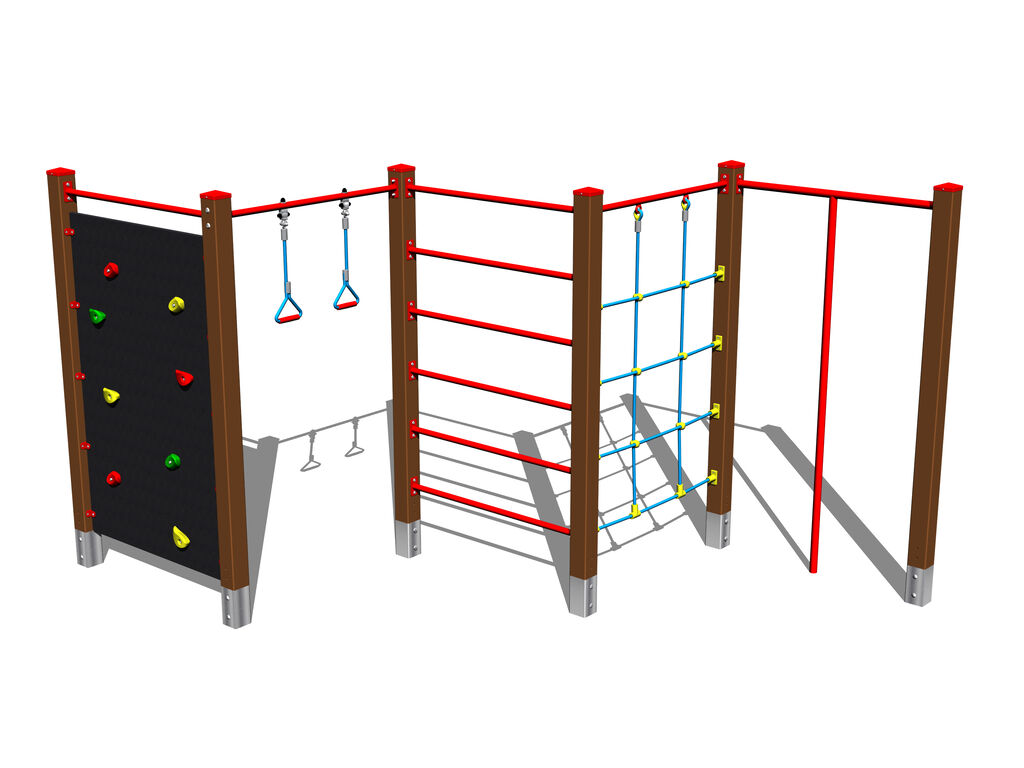

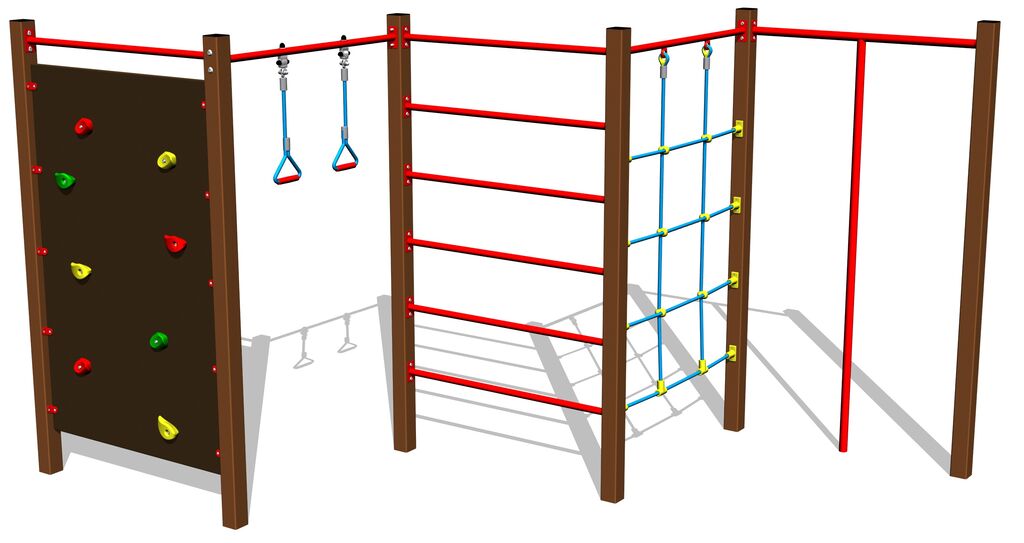

Climbing wall, 2x swinging rope loop, Swedish ladder, climbing net, climbing pole. More information
Choose the color option
Technical specifications
| Product code: | SS-501KW-20 |
|---|---|
| Weight: | 230.19 kg |
| Recommended age: | 3-15 years |
| Free fall height: | 2 m |
| Load capacity: | 270 kg |
| Maximum number of users: | 5 |
| Measurements: | 4.38 x 0.99 x 2.12 m |

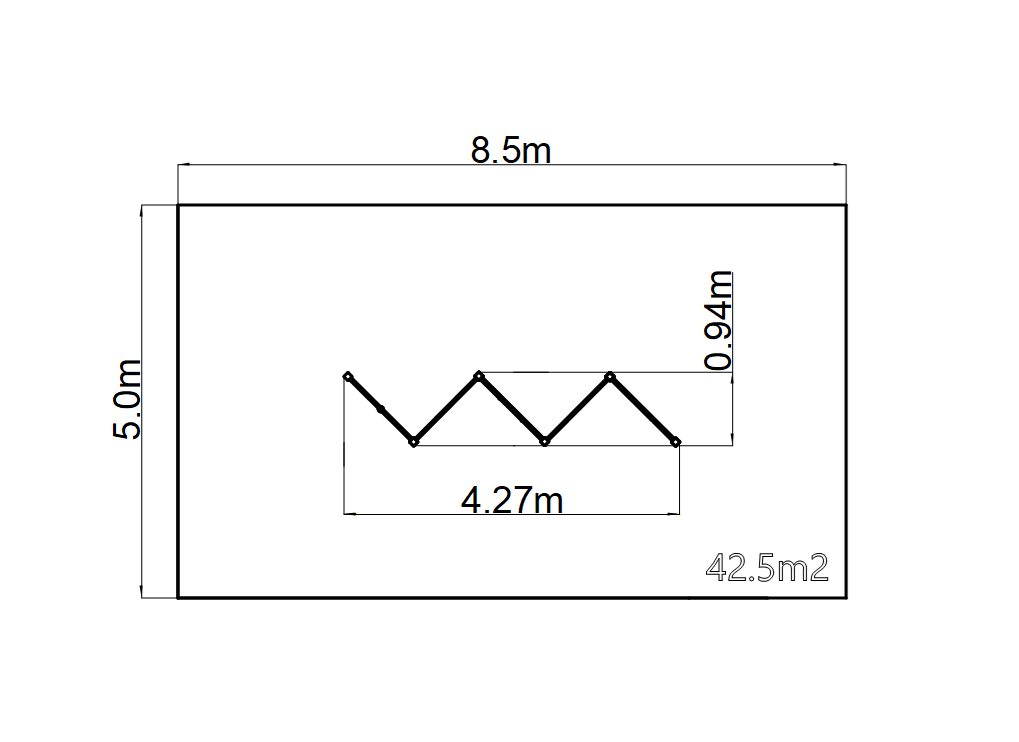

| Required area for assembly: | 9 x 5.5 m |
| Fall damping surface: | Rubber or gravel 49.5 m2 |
The support structure of the climbing set is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life of the workout elements or duplex powder coated with coat curing according to RAL to prevent corrosion. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.
The climbing net and the swinging rope loops are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and they are connected with plastic joints. The climbing wall is made from water-proof plywood designed for external use. The climbing holds are made from the mix of silica sand and epoxy resin, which ensures long life, colour preservation as well as skin friendly surface. All fastening material is galvanized or stainless steel.
No comments or questions Climbing set SS501KW - brown regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
Platform [66.0 kB, DWG]
Platform [45.0 kB, JPG]
