Product code: VH-400KG-10

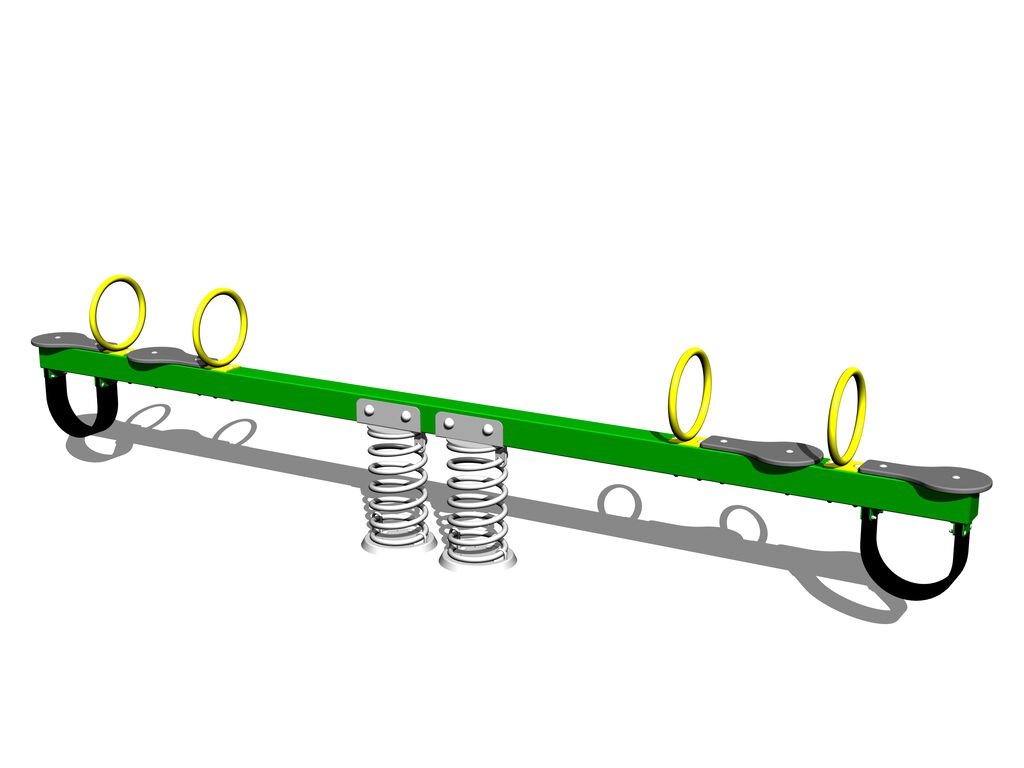

Four seat seesaw on springs VH400K - metal, there is no need for a fall zone up to the height of 1 m, a grass surface is enough. More information
| Product code: | VH-400KG-10 |
|---|---|
| Weight: | 71.1 kg |
| Recommended age: | 2-10 years |
| Free fall height: | 1 m |
| Load capacity: | 216 kg |
| Maximum number of users: | 4 |

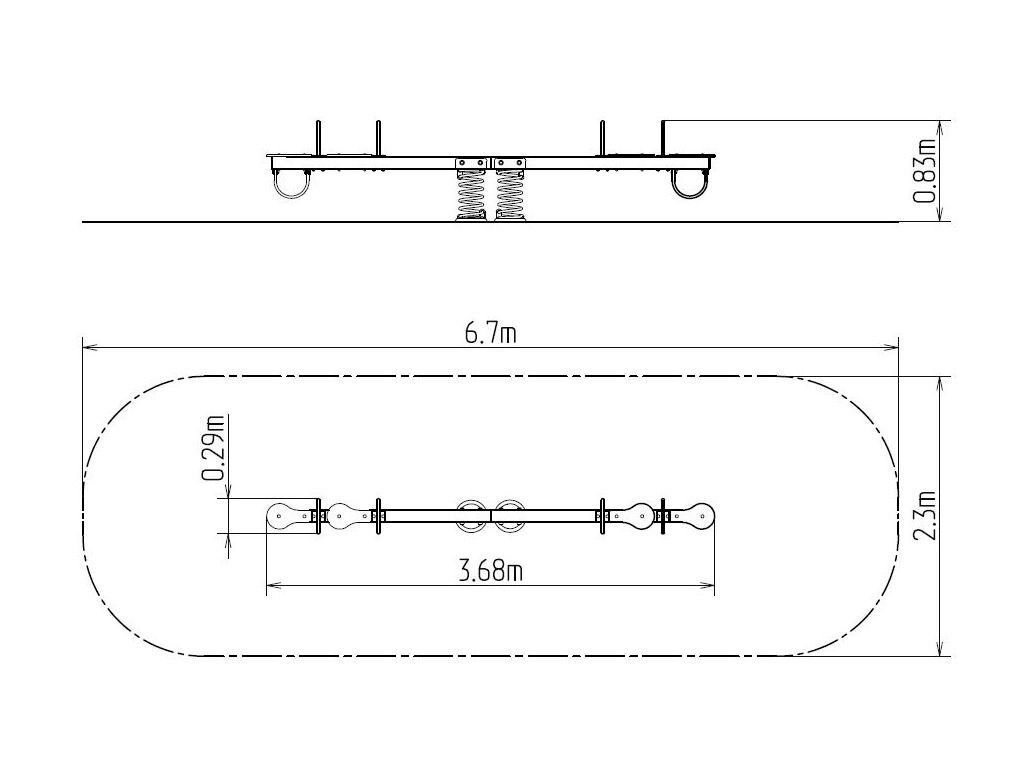

| Measurements: | 3.68 x 0.29 x 0.83 m |
| Required area for assembly: | 6.7 x 2.3 m |
| Fall damping surface: | Grass surface |
The seesaw beam is made from structural steel (steel profile 100 x 100 mm), which is zinc coated and KOMAXIT powder coated according to the RAL colour chart and is secured to the support spring. The spring is made from special spring steel and are KOMAXIT powder coated.
The seats are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance).
The handles are zinc coated and KOMAXIT powder coated steel. The swing is constructed with durability and long life in mind. Impacts are dampened by rubber bumpers. All fastening material is galvanized or stainless steel.No comments or questions Four seat seesaw on springs VH400KG- green regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
Platform [103.0 kB, DWG]
Platform [46.0 kB, JPG]
