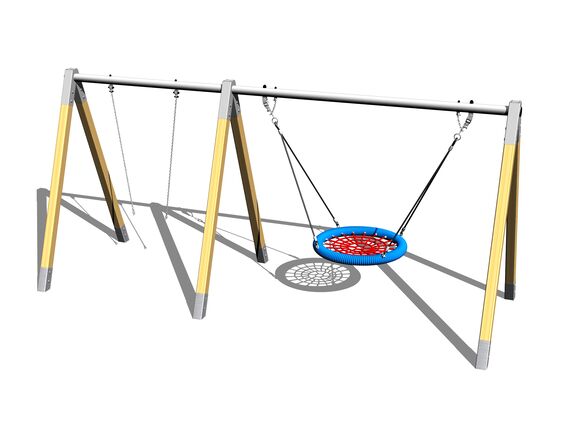

Twin chain swing RH220D (f.h. 1,5 m)

Technical specifications

Product code:	RH-220D-15
Recommended age:	2-15 years
Free fall height:	1,5 m
Load capacity:	324 kg
Maximum number of users:	6
Measurements:	4.8 x 1.75 x 2.24 m
Required area for assembly:	8 x 7.5 m
Fall damping surface:	Rubber or gravel 37.5 m2

The swing's support structure is made from thick glued wooden supports. This solution ensures maximum protection against cracking, which is common for products made from solid wood. The wooden supports are impregnated and coated with a triple layer of lacquer, which meets the terms and conditions of the EN71/3 Standard (safe for children's toys). The structures are anchored into the ground in steel plates, which are protected against corrosion by hot-dip galvanizing a and fixed in a concrete bed. The anchors are fastened to the play unit with bolts and their structure ensures that they are not in direct contact with the ground.

The swings are hung on a metal girder using galvanized chains. The "Bird's Nest" seat is made from polypropylene rope with heavy duty fibres. The hanging ropes are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core). All fastening material is galvanized or stainless steel.
