UNIVERSAL 4U315D

UNIVERSAL 4U315D

Products from the same category:

Product code: 4U-315D-20

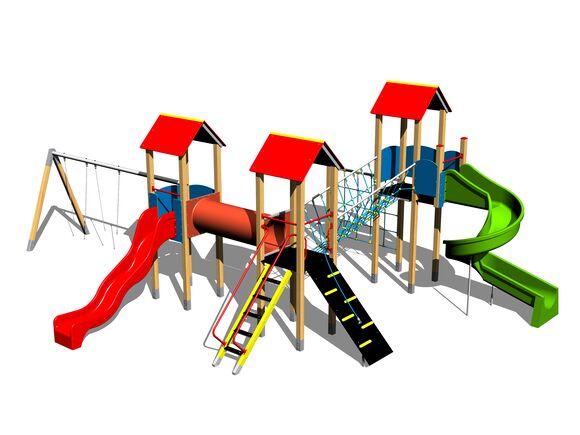

Seats and hinges are not part of the swing. It is necessary to buy a seat (2 pieces) of your choice and curtains (4 pieces). 3x tower, slide, tube slide, 3x A-shaped roof, 6x barrier from HDPE, sloping ramp with the rope and HDPE steps, sloping ramp with steps and metal handles, crawl tunnel between the towers, rope bridge, metal beama, vertical climbing net. More information

Ask

We advise to buy more pieces

Technical specifications

Product code: 4U-315D-20
Weight: 897.79 kg
Recommended age: 3-15 years
Free fall height: 2,0 m
Load capacity: 1242 kg
Maximum number of users: 23
Measurements: 10.88 x 7.07 x 4.12 m
Required area for assembly: 14.5 x 11 m
Fall damping surface: Rubber or gravel
118 m2
The tower unit support structure is made from thick glued wooden supports. This solution ensures maximum protection against cracking, which is common for products made from solid wood. The wooden supports are impregnated and coated with a triple layer of lacquer, which meets the terms and conditions of the EN71/3 Standard (safe for children's toys). The structures are anchored into the ground in steel plates, which are protected against corrosion by hot-dip galvanizing and fixed in a concrete bed. The anchors are fastened to the play unit with bolts and their structure ensures that they are not in direct contact with the ground. All other metallic elements are also zinc coated and treated with baked paint KOMAXIT according to the RAL colour system.

The slide and tube slide are made from fibreglass. The surfaces of the slide, tube slide, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The climbing net, rope bridge are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic or aluminium joints. The platforms and the ramp are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). The crawler tunnel is made of fibreglass with high UV stability and high colour stability. The roofs are made from HPL (High-pressure laminate, which is characterised by high colour stability, UV resistance and water resistance). All fastening material is galvanized or stainless steel.
