Product code: 6U-151D-10

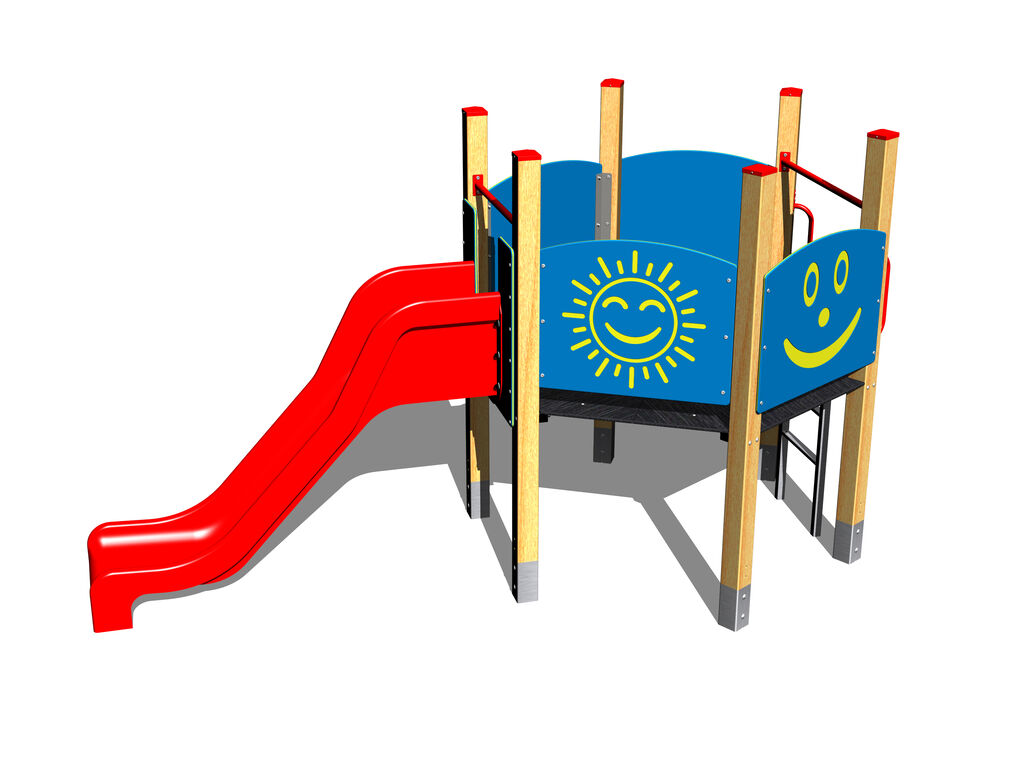

Tower, slide, ladder, 4x barrier from HDPE. More information
|Recommended age:||2-15 years|
|Free fall height:||1 m|
|Load capacity:||432 kg|
|Maximum number of users:||8|

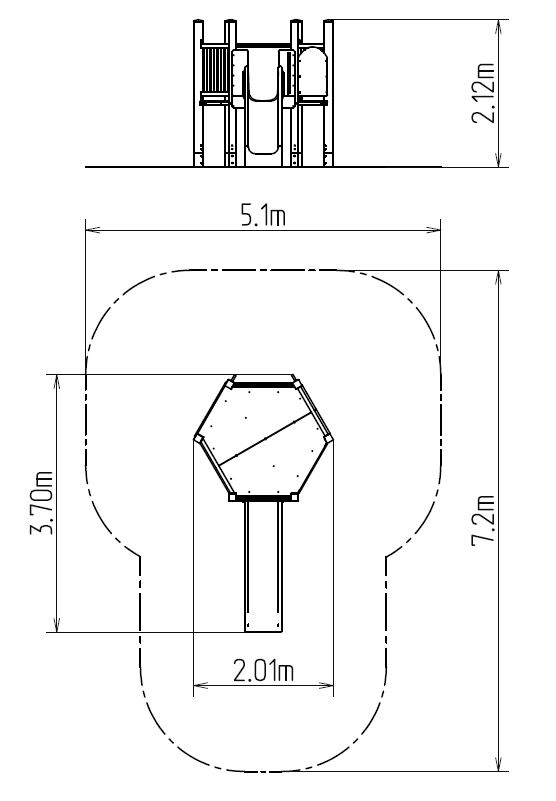

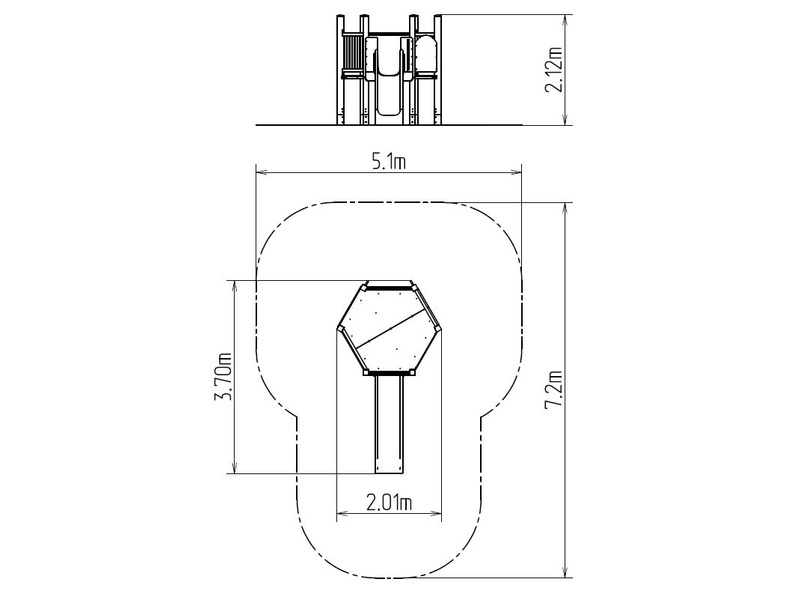

|Measurements:||2.01 x 3.7 x 2.12 m|
|Required area for assembly:||5.1 x 7.2 m|
|Fall damping surface:||Grass surface|
The tower unit support structure is made from 100 x 100 mm thick glued wooden supports. This solution ensures maximum protection against cracking, which is common for products made from solid wood. The wooden supports are impregnated and coated with a triple layer of lacquer, which meets the terms and conditions of the EN71/3 Standard (safe for children's toys). The structures are anchored into the ground in steel plates, which are protected against corrosion by hot-dip galvanizing and fixed in a concrete bed. The anchors are fastened to the play unit with bolts and their structure ensures that they are not in direct contact with the ground. All other metallic elements are also zinc coated and treated with baked paint KOMAXIT according to the RAL colour system.
The slide is made from fibreglass. The surfaces of the slides, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments).The platform is made from water-proof plywood designed for external environment or from HDPE should the client require. All fastening material is galvanized or stainless steel.
No comments or questions UNIVERSAL 6U151D regarding this product. Do not hesitate to ask.
- Technical sheet [170 kB, PDF]
- Platform [170.0 kB, DWG]
- Platform [42.0 kB, JPG]
