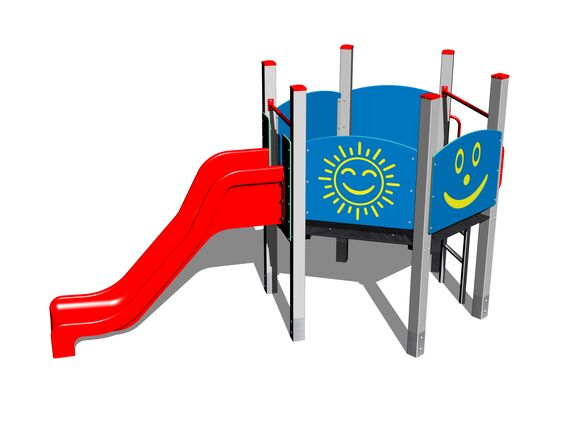

UNIVERSAL 6U151KS - silver
Product code: 6U-151KS-10
Tower, slide, ladder, 4x barrier from HDPE. More information
Choose the color option
Technical specifications
Product code: | 6U-151KS-10 |
---|---|
Weight: | 265.0 kg |
Recommended age: | 2-15 years |
Free fall height: | 1 m |
Load capacity: | 432 kg |
Maximum number of users: | 8 |
Measurements: | 2.01 x 3.7 x 2.12 m |
Required area for assembly: | 5.1 x 7.2 m |
Fall damping surface: | Grass surface |
The support structure of the tower unit is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life of the workout elements, or duplex powder coated with coat curing according to RAL to prevent corrosion. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.
The slide is made from fibreglass. The surfaces of the slides, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments).The platform is made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). All fastening material is galvanized or stainless steel.
No comments or questions UNIVERSAL 6U151KS - silver regarding this product. Do not hesitate to ask.
- Technical sheet [170 kB, PDF]
- Platform [170.0 kB, DWG]
- Platform [42.0 kB, JPG]
