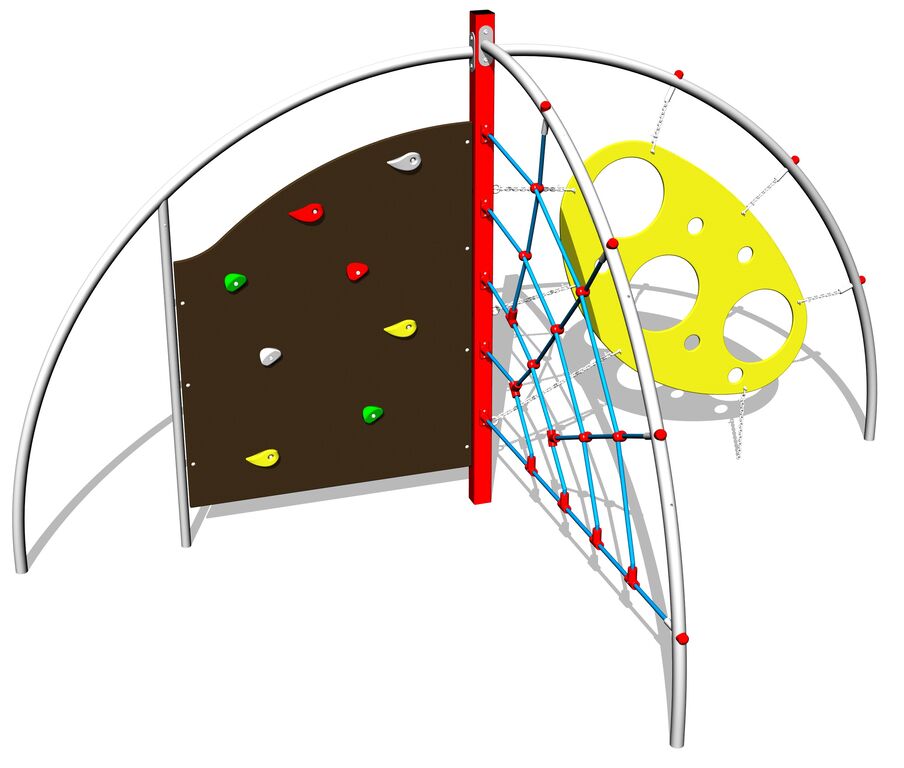

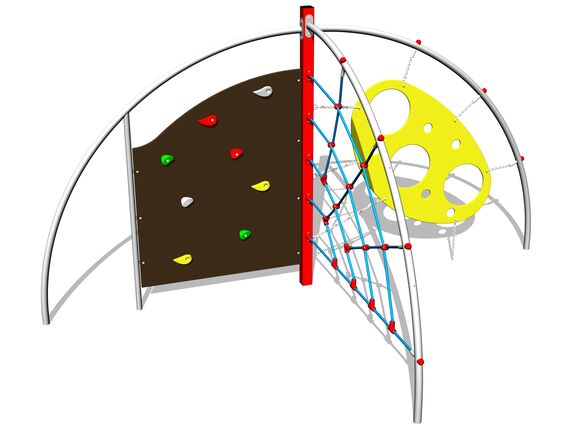

Climbing set SS8309KR - red

Technical specifications

Product code:	SS-8309KR-20
Weight:	90.92 kg
Recommended age:	3-15 years
Free fall height:	2 m
Load capacity:	216 kg
Maximum number of users:	4
Measurements:	4 x 2.05 x 2.12 m
Required area for assembly:	7 x 5.5 m
Fall damping surface:	Rubber or gravel 38.5 m2

The support structure of the climbing set is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life of the workout elements or duplex powder coated with coat curing according to RAL to prevent corrosion. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.

The ropes and nets are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and they are connected with plastic joints. The climbing wall is made from HPL (High-preSS88ure laminate, which is characterised by high colour stability, UV resistance and water resistance). The climbing holds are made from the mix of silica sand and epoxy resin, which ensures long life, colour preservation as well as skin friendly surface. The wall is made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). All fastening material is galvanized or stainleSS88 steel.
