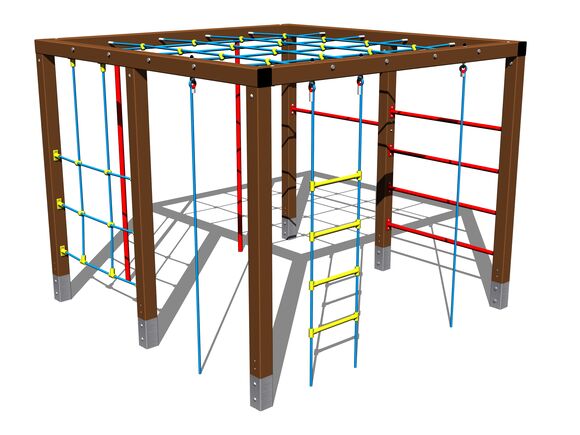

ltClimbing set SS901KW - brown
Product code: SS-901KW-20
Climbing net, 2x climbing pole, fitness rack, Swedish ladder, 2x climbing rope, rope ladder, horizontal climbing net. More information
Choose the color option
Technical specifications
| Product code: | SS-901KW-20 |
|---|---|
| Weight: | 261.81 kg |
| Recommended age: | 3-15 years |
| Free fall height: | 2 m |
| Load capacity: | 486 kg |
| Maximum number of users: | 9 |
| Measurements: | 2.51 x 2.5 x 2.01 m |

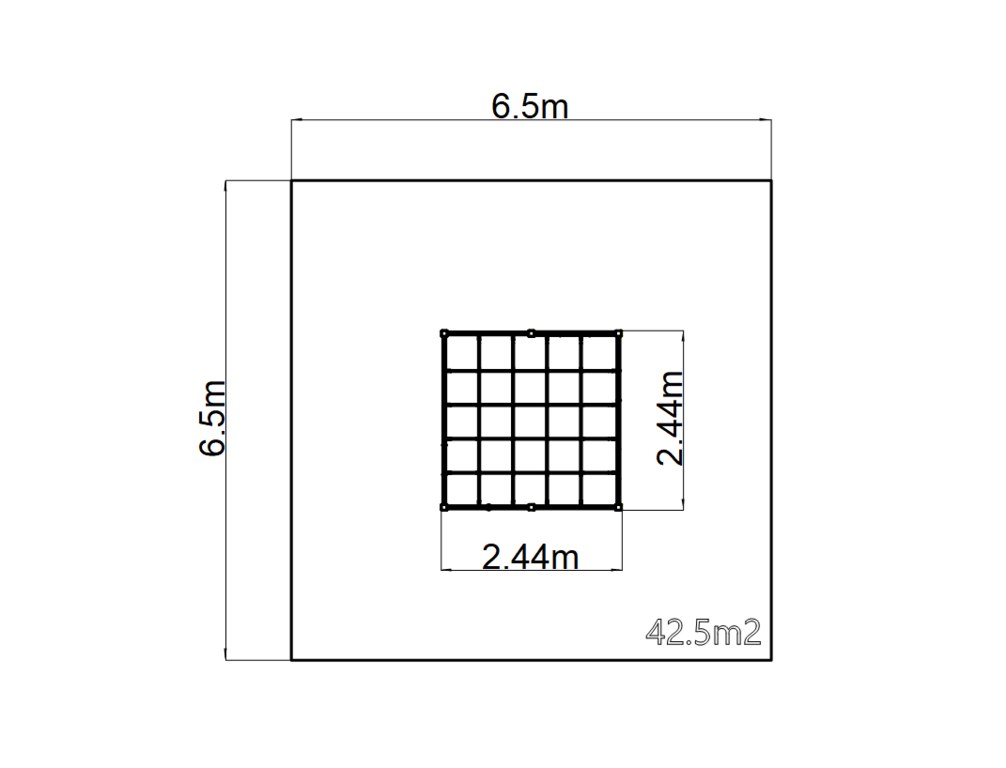

| Required area for assembly: | 6.5 x 6.5 m |
| Fall damping surface: | Rubber or gravel 42.5 m2 |
The support structure of the climbing set is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life of the workout elements or duplex powder coated with coat curing according to RAL to prevent corrosion. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.
The climbing net, the horizontal climbing net, the climbing rope and the rope ladder are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and they are connected with plastic joints. The ropes are connected with plastic joints. All fastening material is galvanized or stainless steel.
No comments or questions Climbing set SS901KW - brown regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
Platform [44.0 kB, DWG]
Platform [41.0 kB, JPG]
