Game set castle UNH2068KS - silver

Products from the same category:

Previous Next

New product

Product code: UNH-2068KS-20

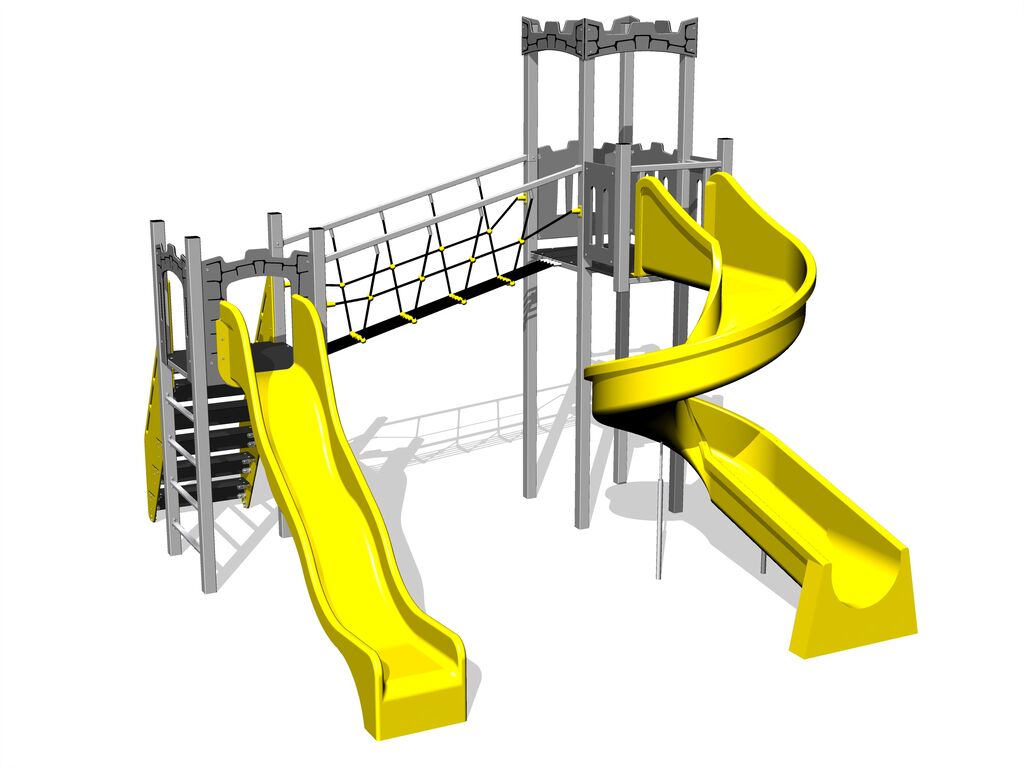

2x tower, tube slide, slide, Zinnenbattlements, 2x barrier, rope bridge, sloping ramp with steps and sides, vertical pole climb. More information

Choose the color option

Game set castle UNH2068KW - brown

We advise to buy more pieces

Product - SN-001-15

Normal seat SN001 (including chains)

Request price

Normal seat SN001 – aluminum, covered with a soft and comfortable rubber. Supplied with 2 chains (1,8 m), without joint hangers. The hangers may be purchased separately here .

Product - SB-002-15

BABY seat SB002 (including chains, f.h. 1,5 m)

Request price

BABY SB002 seat – fall height 1.45 m, supplied with 2 chains, without joint hangers. The hangers may be purchased separately here .

Product - HZ-001

Swing joint HZ001 (for Baby and Normal seat)

Request price

Swing joint HZ001 for Baby and Normal seat, price for 1 piece.

Product - SN-003-15

Special seat SN003R (including chains)

Request price

Special seat SN003 – HDPE with shock-absorbing bumper. Supplied with 2 chains (1,8 m), without joint hangers. The hangers may be purchased separately here .

Technical specifications

Product code:	UNH-2068KS-20
Recommended age:	3-15 years
Free fall height:	2,0 m
Maximum number of users:	15

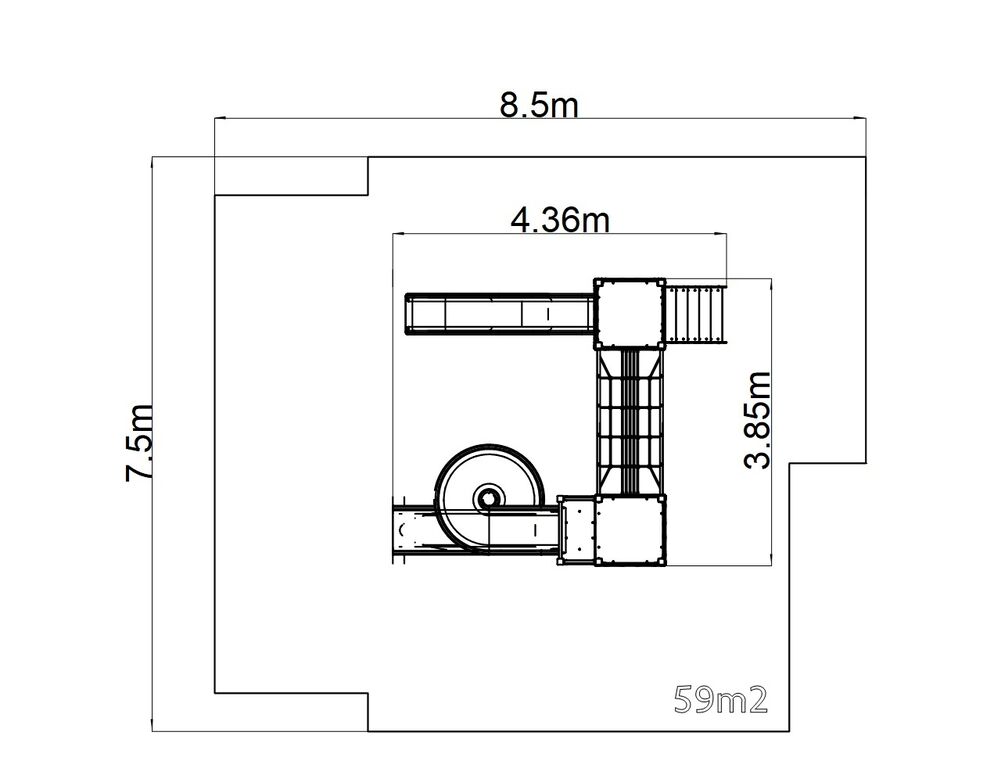

Measurements:	4.36 x 3.85 x 3.66 m
Required area for assembly:	8.5 x 7.5 m
Fall damping surface:	Rubber or gravel 59 m²
Standard:	ČSN EN 1176-1 ed.2 +A1:2024 ČSN EN 1176-2 ed.2:2018 ČSN EN 1176-3 ed.2:2018 ČSN EN 1176-11:2015

The supporting structure is made of galvanized structural steel and then powder coated, and all other metal parts are made of black structural steel, sandblasted, duplex sprayed with powder coated.

All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.

The slide and tube slide are made from fibreglass. The surfaces of the slide, tube slide, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The rope bridge is made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and is connected with plastic or aluminium joints. The platforms are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). All fastening material is galvanized or stainless steel.

Insert new comment

No comments or questions Game set castle UNH2068KS - silver regarding this product. Do not hesitate to ask.

Technical sheet [170 kB, PDF]

2x tower, slide, Zinnenbattlements, 3x barrier, sloping ramp, rope bridge, sloping ramp with plastic side, metal beam, 1x seat Normal.
