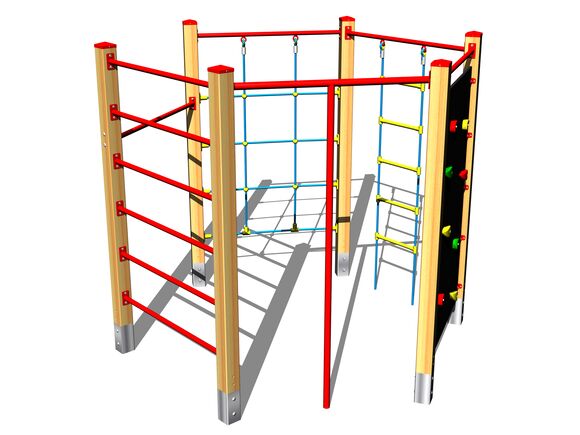

Climbing set SS603D

Climbing set SS603D

Products from the same category:

Product code: SS-603D-20

Swedish ladder, climbing pole, climbing wall, fitness rack, climbing net, rope ladder. More information

Ask

Technical specifications

Product code: SS-603D-20
Weight: 164.28 kg
Recommended age: 3-15 years
Free fall height: 2 m
Load capacity: 324 kg
Maximum number of users: 6
Measurements: 2.28 x 2.55 x 2.12 m
Required area for assembly: 6.5 x 6 m
Fall damping surface: Rubber or gravel
39 m2

The climbing set support structure is made from thick glued wooden supports. This solution ensures maximum protection against cracking, which is common for products made from solid wood. The wooden supports are impregnated and coated with a triple layer of lacquer, which meets the terms and conditions of the EN71/3 Standard (safe for children's toys). The structures are anchored into the ground in steel plates, which are protected against corrosion by hot-dip galvanizing and fixed in a concrete bed. The anchors are fastened to the play unit with bolts and their structure ensures that they are not in direct contact with the ground. All other metal units are zinc coated and KOMAXIT powder coated according to the RAL.

The climbing net and the rope ladder are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and they are connected with plastic joints. The climbing wall is made from water-proof plywood designed for external use. The climbing holds are made from the mix of silica sand and epoxy resin, which ensures long life, colour preservation as well as skin friendly surface. All fastening material is galvanized or stainless steel.
