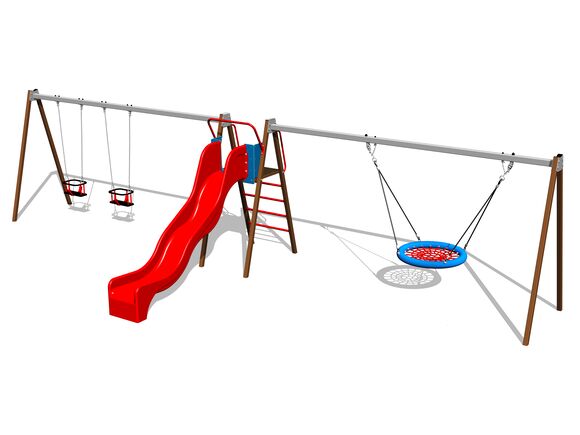

Triple chain swing Nest with slide RH6383KW - Brown (1,5 m)
Product code: RH-6383KW-15
Triple chain swing Nest with slide RH6383K- with a landing and a metal, galvanized boom, drop height 1 m. There are four color variations available - red, green, blue and yellow. More information
Choose the color option
Technical specifications
Product code: | RH-6383KW-15 |
---|---|
Recommended age: | 2-15 years |
Free fall height: | 1,5 m |
Load capacity: | 594 kg |
Maximum number of users: | 11 |
Measurements: | 9.66 x 3.77 x 2.32 m |
Required area for assembly: | 13 x 8.5 m |
Fall damping surface: | Rubber or gravel 75 m2 |
The load-bearing structure of the double-shaft is made of structural steel, which is protected against corrosion by zinc coating, which results in a very significant extension of the life of the play element or duplex powder coated with coat curing according to RAL to prevent corrosion. These structures are embedded in a concrete bed. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.
The slide is made of fibreglass. The chute front is made of high-quality HDPE (high-pressure, full-colored polyethylene, which is characterized by high color stability, UV resistance and especially safety because it is brittle and there is no risk of injury to children by sharp debris). The "Nest" seat is made of high-strength fiber polypropylene rope. The suspension ropes are made of HERKULES (16 mm polypropylene rope with internal steel core). The platform is made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). The Baby seat baby is made of rubber and is reinforced with an aluminum insert. The chains are stainless steel, resulting in a very prolonged service life of the product. All fastening material is galvanized or stainless steel.
No comments or questions Triple chain swing Nest with slide RH6383KW - Brown (1,5 m) regarding this product. Do not hesitate to ask.
- Technical sheet [170 kB, PDF]
