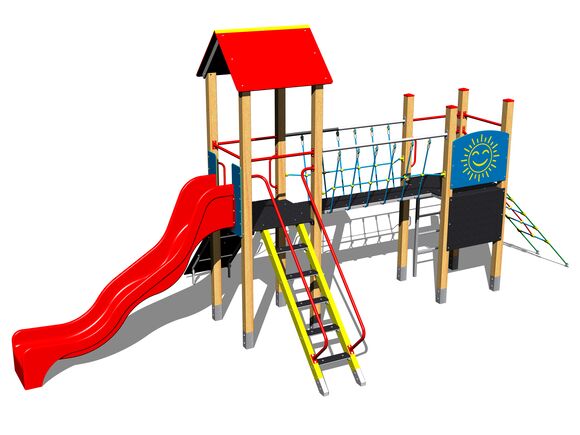

UNIVERSAL 4U227D
Product code: 4U-227D-15
2x tower, A-shaped roof, slide, sloping ramp with the rope and HDPE steps, ladder, sloping ramp with steps and metal handles, bridge with a rope railing, drawing board, barrier. More information
Technical specifications
Product code: | 4U-227D-15 |
---|---|
Weight: | 477.06 kg |
Recommended age: | 3-15 years |
Free fall height: | 1,5 m |
Load capacity: | 918 kg |
Maximum number of users: | 17 |
Measurements: | 7.7 x 3.73 x 3.63 m |
Required area for assembly: | 11.5 x 7 m |
Fall damping surface: | Rubber or gravel 58 m2 |
The slide is made from fibreglass. The surfaces of the slides, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The rope and the climbing net are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic or aluminium joints. The platforms, ramp and the drawing board are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). The roof is made from HPL (High-pressure laminate, which is characterised by high colour stability, UV resistance and water resistance). All fastening material is galvanized or stainless steel.
No comments or questions UNIVERSAL 4U227D regarding this product. Do not hesitate to ask.
- Technical sheet [170 kB, PDF]
- Platform [94.0 kB, DWG]
- Platform [52.0 kB, JPG]
