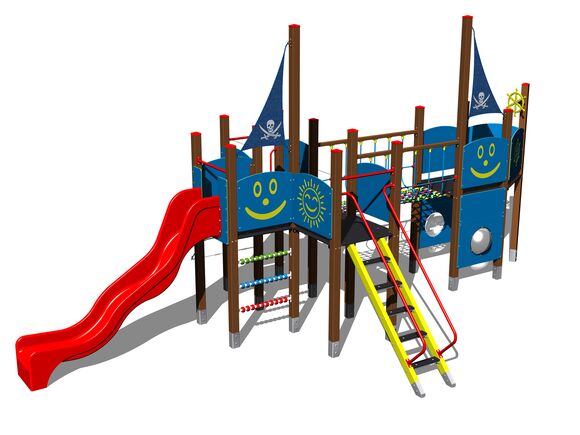

ltUNIVERSAL 4U603KW - brown
Product code: 4U-603KW-15
6x tower, slide, 2x post with a flag, sloping net access, sloping ramp with steps and metal handles, helm made from HDPE, 10x barrier from HDPE, 2x barrier with an aperture, rope bridge, abacus. More information
Choose the color option
Technical specifications
| Product code: | 4U-603KW-15 |
|---|---|
| Weight: | 900.0 kg |
| Recommended age: | 3-15 years |
| Free fall height: | 1,5 m |
| Load capacity: | 1404 kg |
| Maximum number of users: | 26 |
| Measurements: | 8.02 x 5.59 x 3.98 m |
| Required area for assembly: | 11.5 x 9 m |
| Fall damping surface: | Rubber or gravel 69.5 m2 |
The support structure of the tower unit is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life or duplex powder coated with coat curing according to RAL to prevent corrosion. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.
The slide is made from fibreglass. The surfaces of the slide, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The ropes and nets are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic or aluminium joints. The platforms are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). All fastening material is galvanized or stainless steel.
No comments or questions UNIVERSAL 4U603KW - brown regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
Platform [318.0 kB, DWG]
Platform [62.0 kB, JPG]
