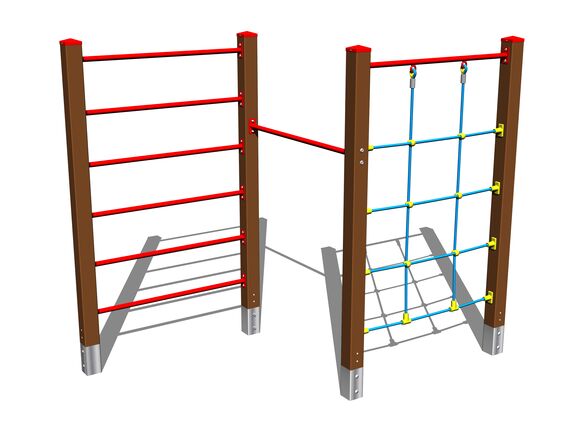

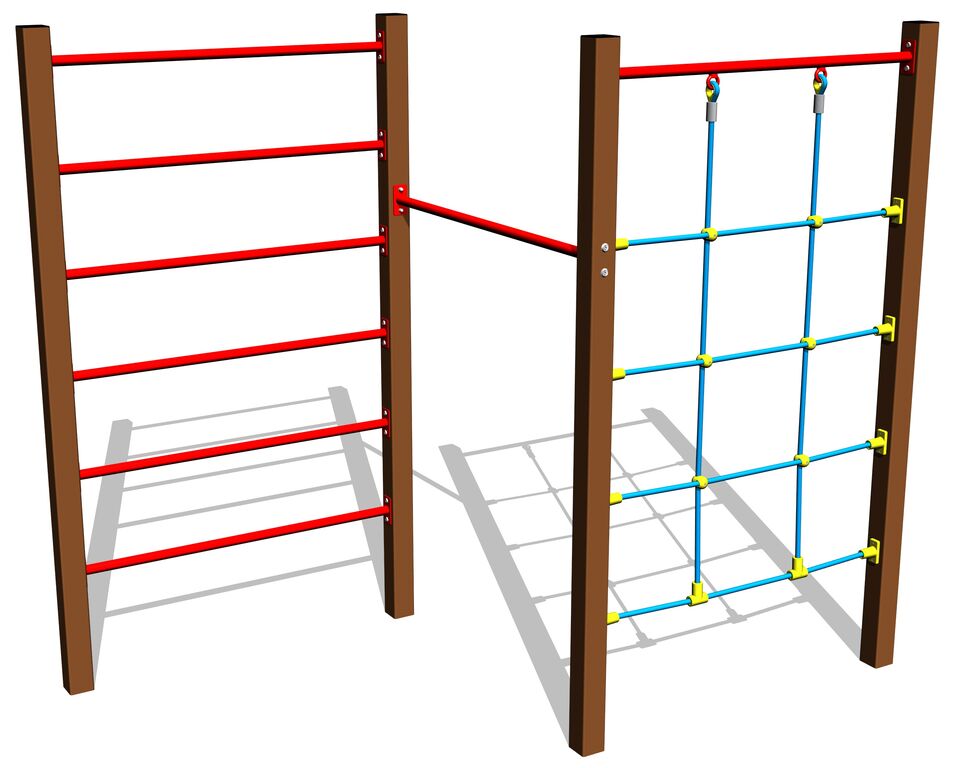

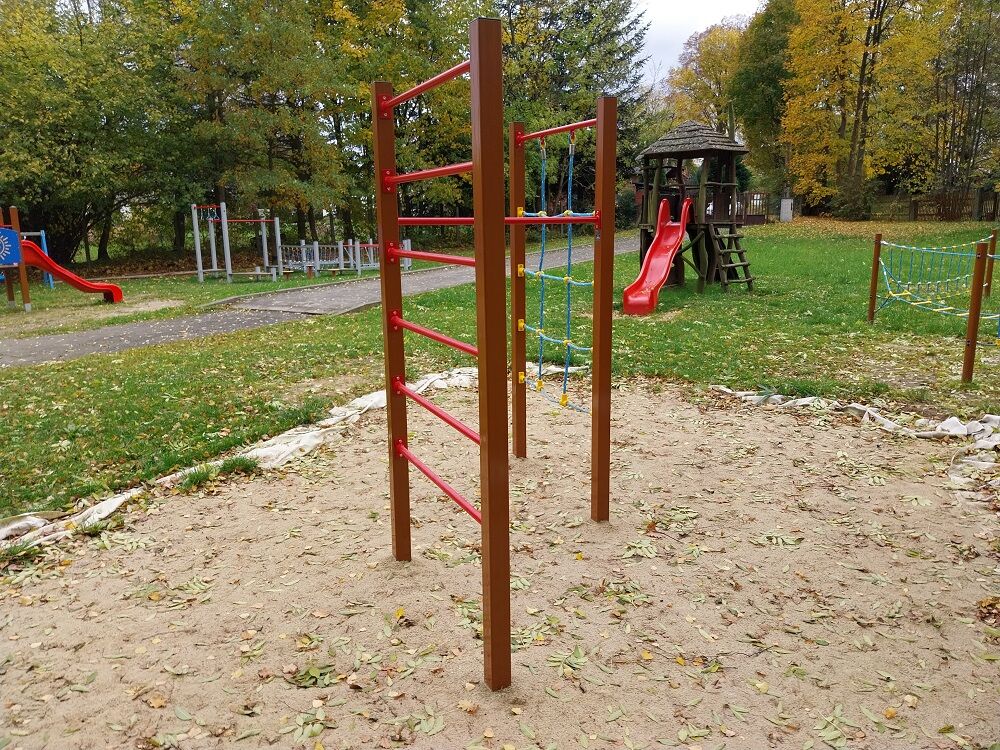

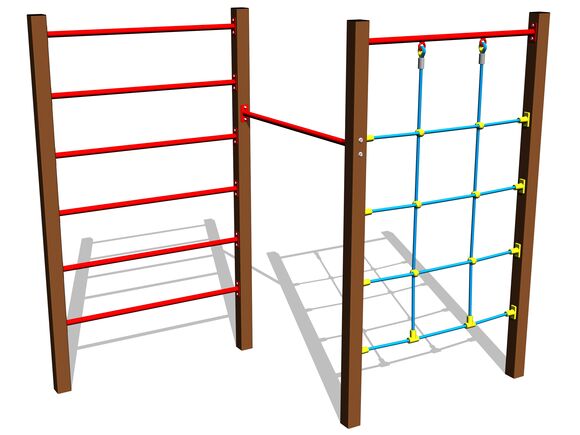

Climbing set SS8304KW - brown
Product code: SS-8304KW-20
Climbing net, fitneSS8 rack, Swedish ladder. More information
Choose the color option
Technical specifications
Product code: | SS-8304KW-20 |
---|---|
Weight: | 132.1 kg |
Recommended age: | 3-15 years |
Free fall height: | 2 m |
Maximum number of users: | 3 |
Measurements: | 2.82 x 1.21 x 2.12 m |
Required area for assembly: | 7 x 5.5 m |
Fall damping surface: | Rubber or gravel 38.5 m2 |
The support structure of the climbing set is made from structural steel, it is zinc coated which significantly prolongs the life of the play unit or duplex powder coated with coat curing according to RAL to prevent corrosion and it is fixed in a concrete bed. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion..
The climbing net is made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and it is connected with plastic joints. All fastening material is galvanized or stainleSS88 steel.
No comments or questions Climbing set SS8304KW - brown regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
Platform [45.0 kB, DWG]
Platform [39.0 kB, JPG]
