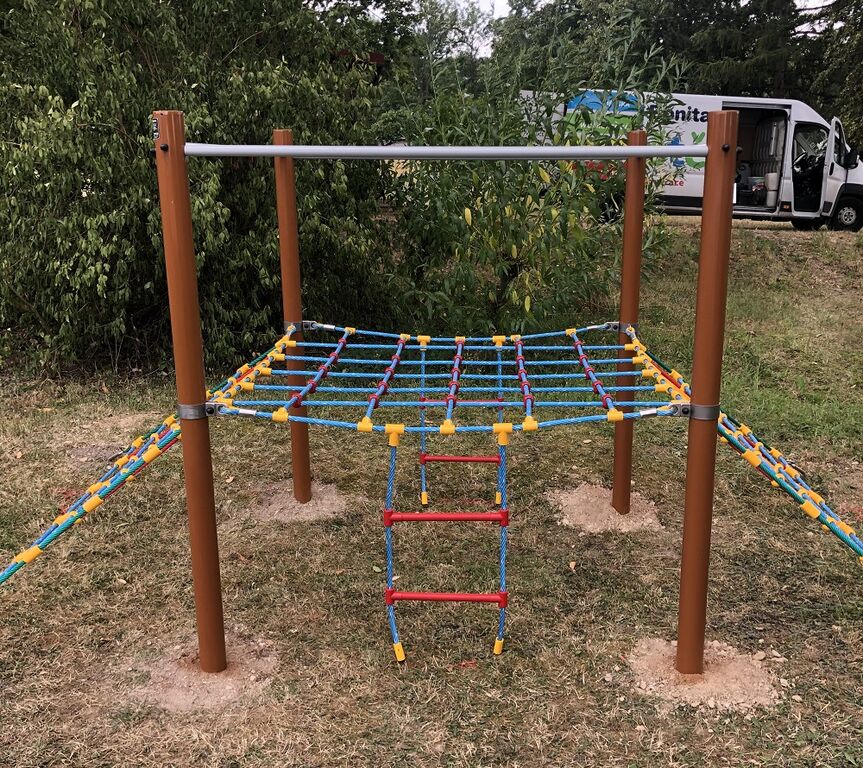

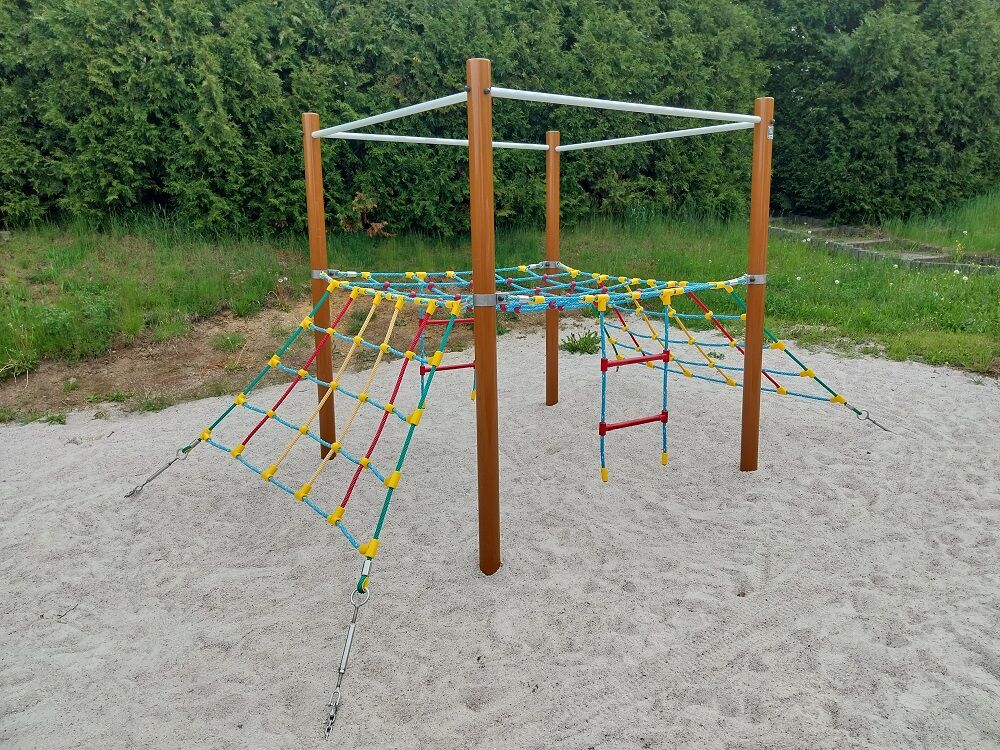

Double-sided rope ramp LP140KW - Brown (f.h. 1 m)

Products from the same category:

Previous Next

Product code: LP-140KW-10

Double-sided rope ramp LP140K (f.h. 1 m) - there is no need for a fall zone up to the height of 1 m, a grass surface is enough. We offer three color variants of the support structure - red, blue and brown. More information

Choose the color option

Double-sided rope ramp LP140KB - Blue (f.h. 1 m)

Double-sided rope ramp LP140KR - red (f.h. 1 m)

Technical specifications

Product code:	LP-140KW-10
Weight:	125.12 kg
Recommended age:	2-10 years
Free fall height:	1 m
Load capacity:	1512 kg
Maximum number of users:	28
Measurements:	3.83 x 2.31 x 1.86 m
Required area for assembly:	7.5 x 6 m
Fall damping surface:	Grass surface

The support structures of the rope unit are made from structural steel, they are zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion and fixed in a concrete bed. The ropes are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic joints. The clamps are stainless steel. All fastening material is galvanized or stainless steel.
