Product code: UNK-4010KS-15

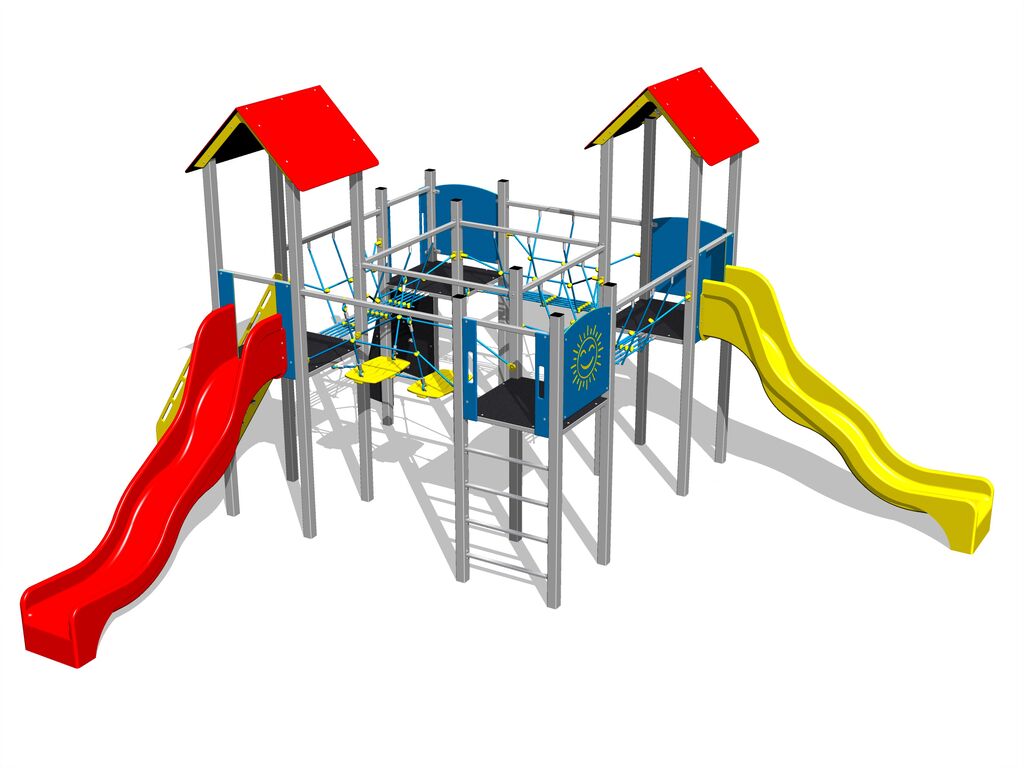

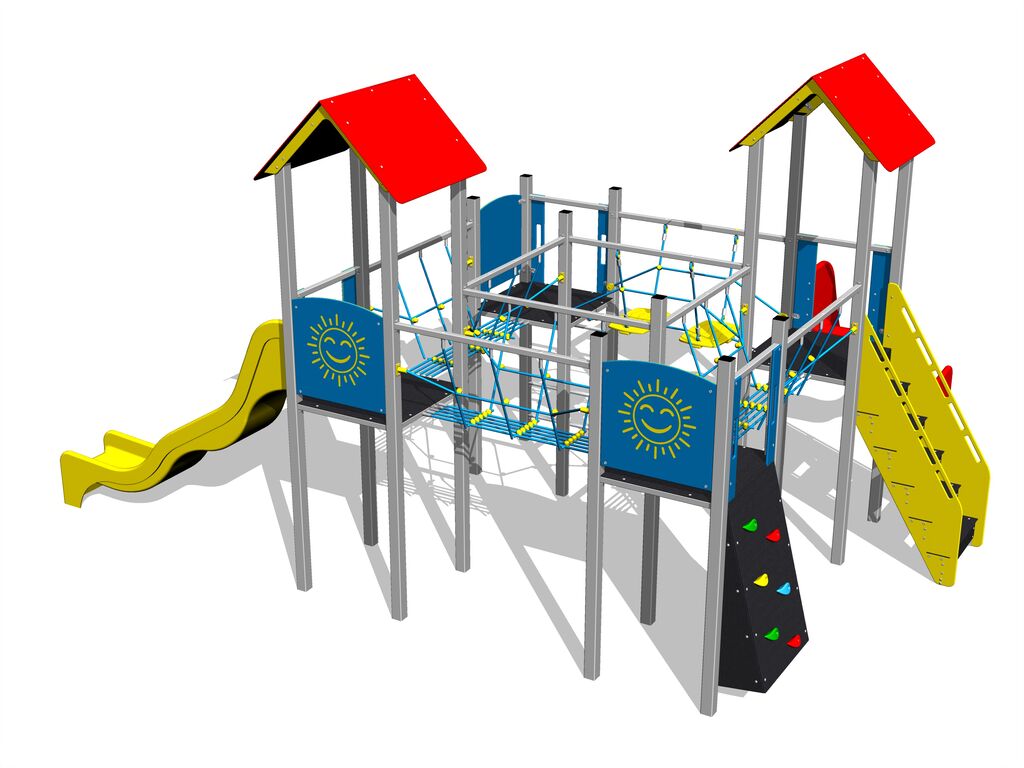

4x tower, 2x A-shaped roof, 2x slide, 3x barrier, vertical pole climb, sloping ramp with steps and sides, sloping climbing wall, 2x rope bridge, 2x rope bridge. More information
| Product code: | UNK-4010KS-15 |
|---|---|
| Recommended age: | 3-15 years |
| Free fall height: | 1,5 m |
| Maximum number of users: | 41 |
| Measurements: | 6.51 x 5.69 x 3.56 m |

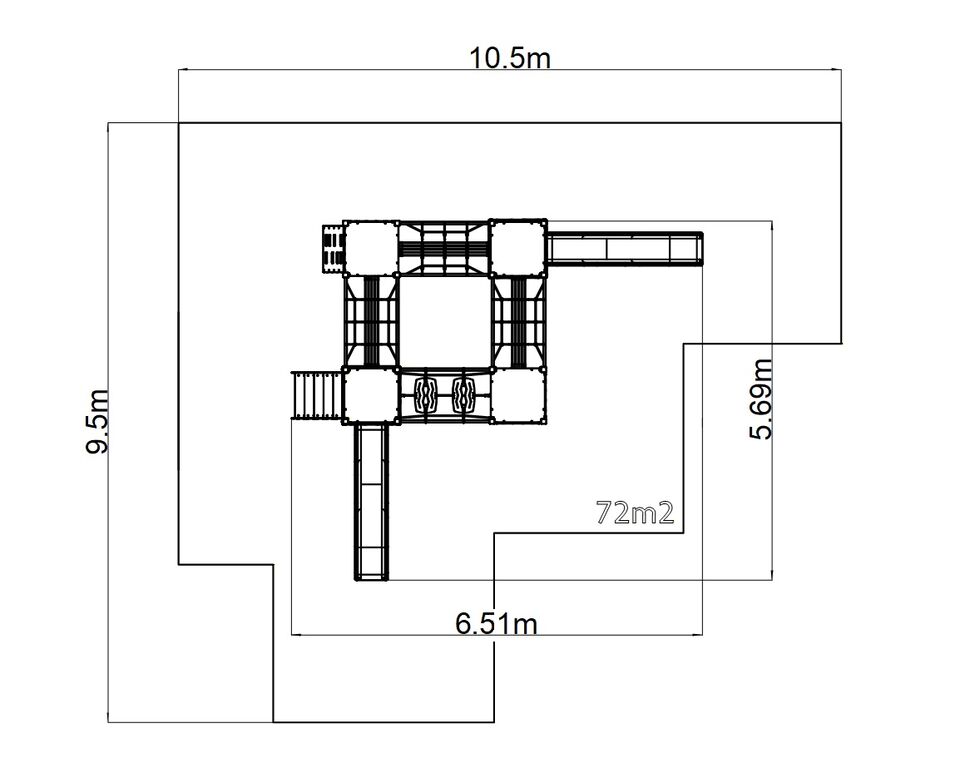

| Required area for assembly: | 10.5 x 9.5 m |
| Fall damping surface: | Rubber or gravel 72 m2 |
| Standard: | ČSN EN 1176-1 ed.2 +A1:2024 ČSN EN 1176-3 ed.2:2018 ČSN EN 1176-11:2015 |
The supporting structure is made of galvanized structural steel and then powder coated, and all other metal parts are made of black structural steel, sandblasted, duplex sprayed with powder coated.
All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.The slides are made from fibreglass. The surfaces of the slides, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The rope bridges and the rope are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic or aluminium joints. The platforms and the ramp are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). The roofs are made from HPL (High-pressure laminate, which is characterised by high colour stability, UV resistance and water resistance). The climbing holds are made from the polyester, which ensures long life, colour preservation as well as skin friendly surface. All fastening material is galvanized or stainless steel.
No comments or questions Game set classic UNK4010KS - silver regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
