Product code: LL-103KB-10

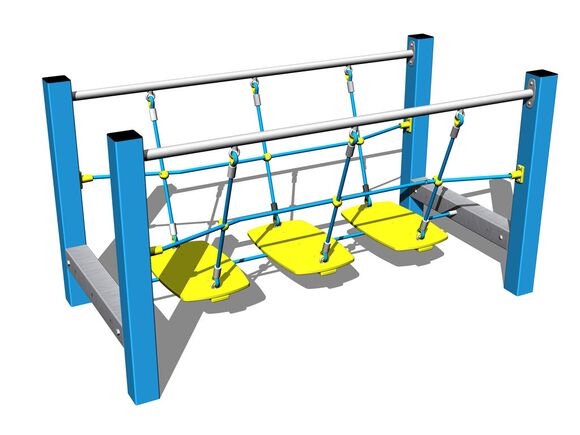

Rope bridge with steps LL103K - metal (f.h. 1 m) - there is no need for a fall zone up to the height of 1 m, a grass surface is enough. We offer three color variants of the support structure - red, blue and brown. More information
| Product code: | LL-103KB-10 |
|---|---|
| Recommended age: | 3-15 years |
| Free fall height: | 1 m |
| Load capacity: | 162 kg |
| Maximum number of users: | 3 |
| Measurements: | 2 x 1 x 1.07 m |
| Required area for assembly: | 5 x 4 m |
| Fall damping surface: | Grass surface |
The support structure of the rope bridge is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life of the workout elements or duplex powder coated with coat curing according to RAL to prevent corrosion. The structure is fixed in a concrete bed. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.
The ropes are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic joints. Steps boards are made of high quality HDPE (high-pressure, full-coloured polyethylene, which is characterised by high colour stability, UV resistance and mainly safety because it is rigid and there is no risk of injury caused by sharp broken fragments).All fastening material is galvanized or stainless steel.
No comments or questions Rope bridge with steps LL103KB - blue regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
