ltRope pyramid with tower PY-831KW - brown
Technical specifications
| Product code: | PY-831KW-10 |
|---|---|
| Recommended age: | 3-15 years |
| Free fall height: | 1,0 m |
| Load capacity: | 3480 kg |
| Maximum number of users: | 60 |

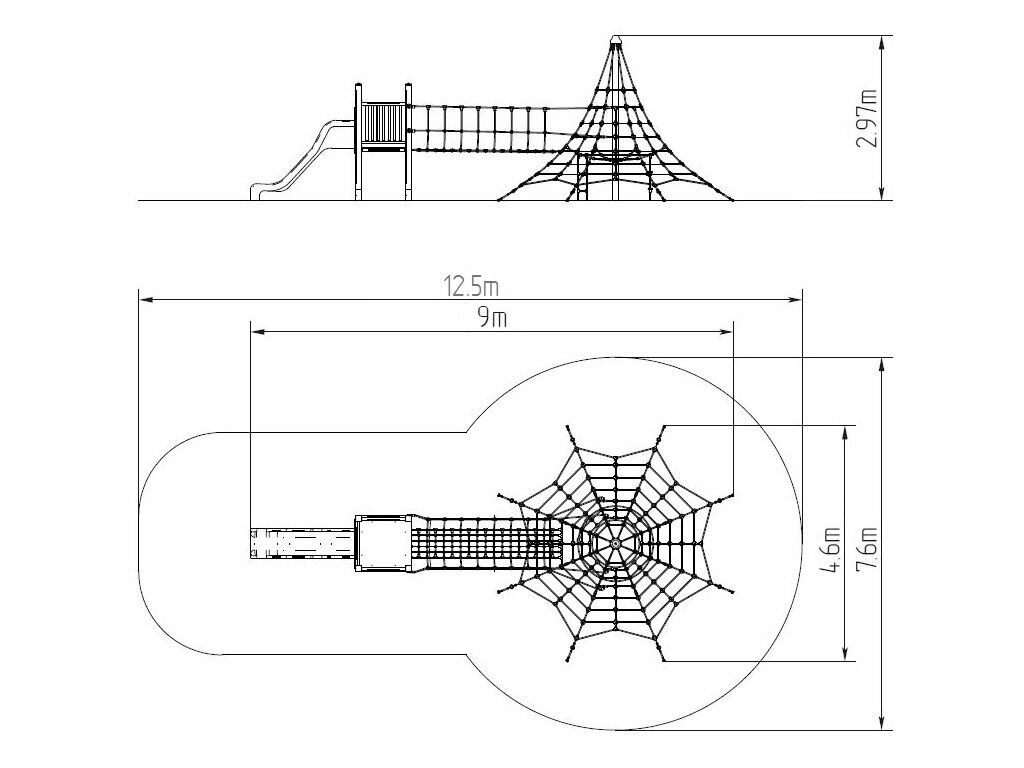

| Measurements: | 9 x 4.6 x 2.97 m |
| Required area for assembly: | 12.5 x 7.6 m |
| Fall damping surface: | Grass surface |
The supporting pole Rope pyramid is made of structural steel. The column is protected against corrosion by hot-dip galvanizing and placed in a concrete bed. These structures are embedded in a concrete bed. The tower's supporting structures are made of structural steel. All other metal elements are also treated with galvanizing or duplex powder coated with coat curing according to RAL to prevent corrosion.
The ropes are made of HERKULES (16 mm polypropylene ropes with inner steel core) and are connected by plastic joints. The slide is made of fibreglass. The chute front is made of high-quality HDPE (high-pressure, full-colored polyethylene, which is characterized by high color stability, UV resistance and especially safety because it is brittle and there is no danger of injuring children with sharp chips). The platform is made of waterproof plywood or HDPE on request. All fasteners are galvanized or stainless steel.
No comments or questions Rope pyramid with tower PY-831KW - brown regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
