Product code: PY-850K-15

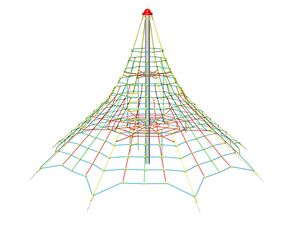

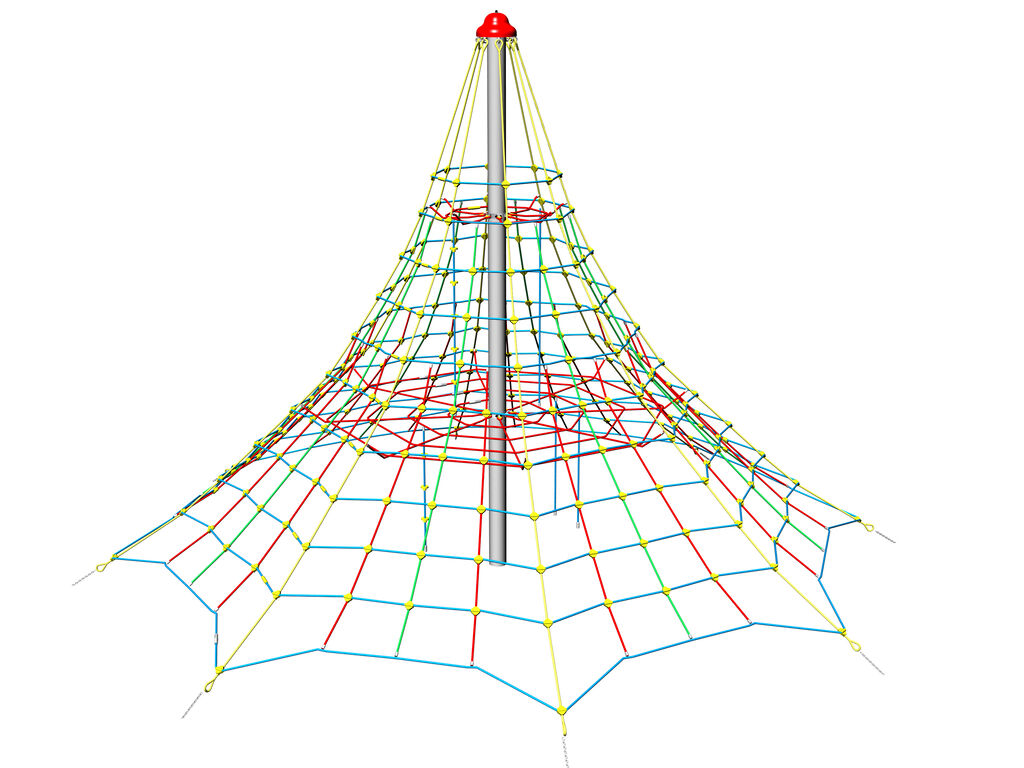

Rope pyramid PY850K (f.h. 1,5 m, with 8 tension locks). More information
| Product code: | PY-850K-15 |
|---|---|
| Weight: | 235.53 kg |
| Recommended age: | 3-15 years |
| Free fall height: | 1,5 m |
| Maximum number of users: | 98 |
| Measurements: | 8.2 x 8.2 x 5 m |
| Required area for assembly: | 11.2 x 11.2 m |
| Fall damping surface: | Rubber or gravel 98 m2 |
| Standard: | ČSN EN 1176-1 ed.2 +A1:2024 ČSN EN 1176-11:2015 |
The support pillar of the rope pyramid is made from structural steel. The pillar is protected against corrosion by hot-dip galvanizing and fixed in a concrete bed. The ropes are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic or aluminium joints. The turnbuckles are stainless steel. All fastening material is galvanized or stainless steel.
No comments or questions Rope pyramid PY850K (f.h. 1,5 m, with 8 tension locks) regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
