Product code: SD-106KW-10

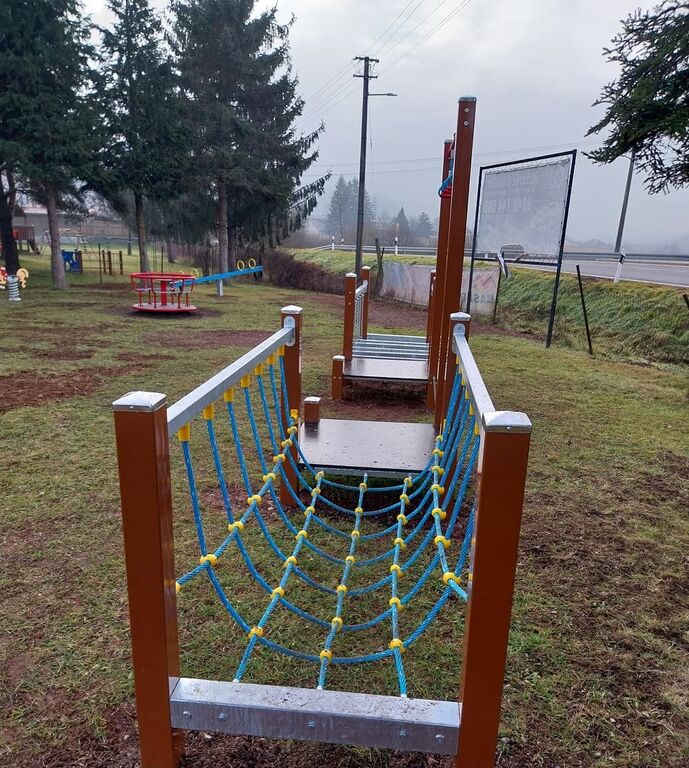

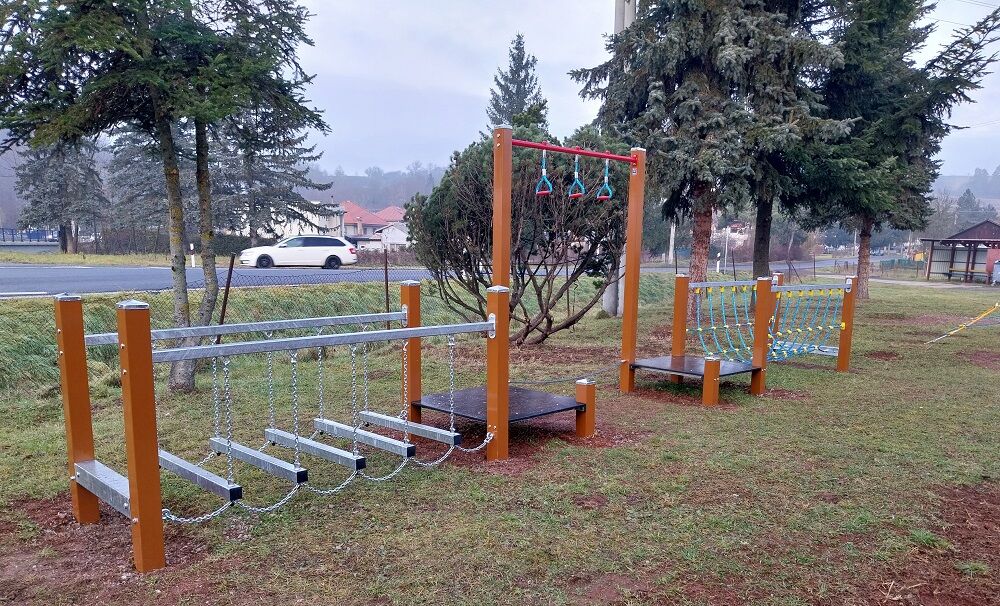

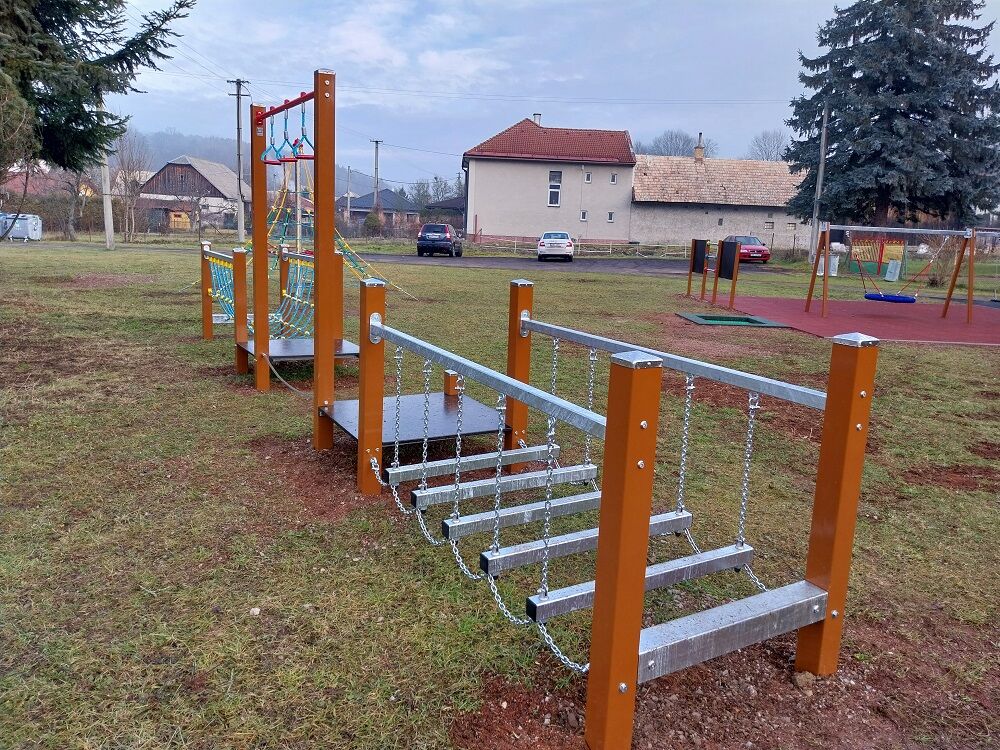

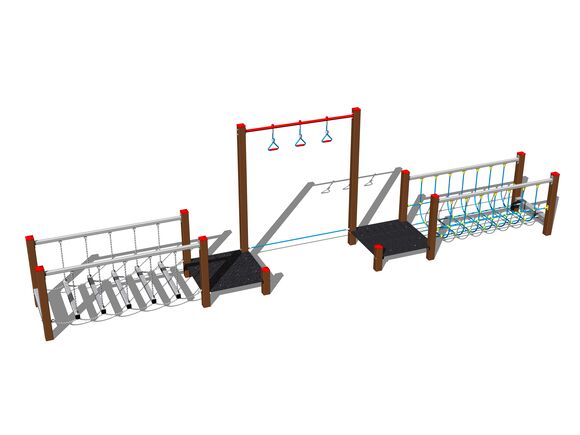

Skill path SD104K - there is no need for a fall zone up to the height of 1 m, a grass surface is enough. We offer three color variants of the support structure - silver, blue and brown. More information
| Product code: | SD-106KW-10 |
|---|---|
| Recommended age: | 2-10 years |
| Free fall height: | 1 m |
| Load capacity: | 270 kg |
| Maximum number of users: | 5 |
| Measurements: | 1 x 8.1 x 2.26 m |
| Required area for assembly: | 4 x 11.1 m |
| Fall damping surface: | Grass surface |
The support structure of the skill path is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life of the workout elements or duplex powder coated with coat curing according to RAL to prevent corrosion. These structures are embedded in a concrete base. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.
Ropes and nets are made of HERKULES (16 mm polypropylene ropes with inner steel core) and are connected by plastic connectors. The platforms are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). The wobbly beams are hung on a metal support using galvanized chains. All fastening material is galvanized or stainless steel.
No comments or questions Skill path SD106KW - brown regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
