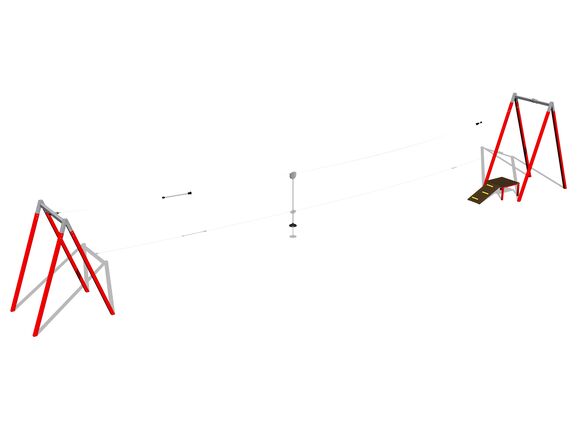

Twin post cableway with a ramp - Red

Technical specifications

Product code:	LD-021KR20-10
Recommended age:	3-15 years
Free fall height:	1 m
Maximum number of users:	2
Measurements:	22.68 x 2 x 3.86 m
Required area for assembly:	24.8 x 4 m
Fall damping surface:	Grass surface
Standard:	ČSN EN 1176-1 ed.2 +A1:2024 ČSN EN 1176-4 ed.2:2019

The support structure are made from structural steel  which is protected against corrosion by zinc coating, resulting in a very prolonged service life or duplex powder coated with coat curing according to RAL to prevent corrosion The structure is fixed in a concrete bed. All other metal units are zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion The platform and the ramp are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). Steps are made from high quality HDPE (full-coloured high-density polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). All fastening material is galvanized or stainless steel.
