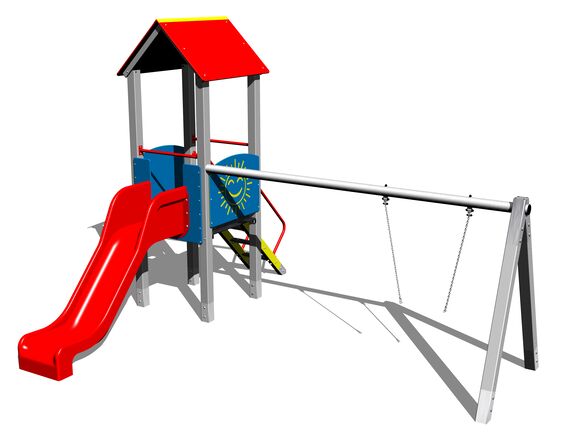

UNIVERSAL 4U125KS - silver

Technical specifications

Product code:	4U-125KS-10
Weight:	377.23 kg
Recommended age:	2-15 years
Free fall height:	1 m
Load capacity:	324 kg
Maximum number of users:	6
Measurements:	4.38 x 3.78 x 3.13 m
Required area for assembly:	7.3 x 7.7 m
Fall damping surface:	Grass surface

The support structure of the tower unit is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life of the workout elements or duplex powder coated with coat curing according to RAL to prevent corrosion. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.

The slide is made from fibreglass. The surfaces of the slides, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The platform is made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). The roof is made from HPL (High-pressure laminate, which is characterised by high colour stability, UV resistance and water resistance). All fastening material is galvanized or stainless steel.
