UNIVERSAL 4U205KW - brown
Product code: 4U-205KW-10

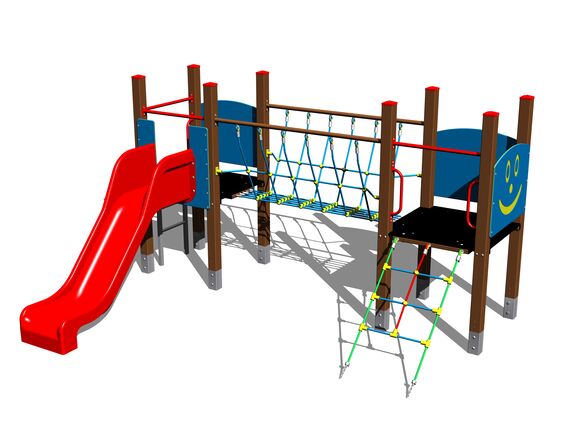

2x tower, slide, sloping net access, ladder, 3x barrier from HDPE, rope bridge. More information
Choose the color option
Technical specifications
Product code: | 4U-205KW-10 |
---|---|
Weight: | 394.93 kg |
Recommended age: | 2-15 years |
Free fall height: | 1 m |
Load capacity: | 810 kg |
Maximum number of users: | 15 |
Measurements: | 3.8 x 2.9 x 2.12 m |
Required area for assembly: | 6.8 x 6.4 m |
Fall damping surface: | Grass surface |
The slide is made from fibreglass. The surfaces of the slides, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The climbing net and the rope bridge are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic or aluminium joints. The platforms are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). All fastening material is galvanized or stainless steel.
No comments or questions UNIVERSAL 4U205KW - brown regarding this product. Do not hesitate to ask.
- Technical sheet [170 kB, PDF]
- Platform [300.0 kB, DWG]
- Platform [53.0 kB, JPG]
