UNIVERSAL 4U251KS - silver

UNIVERSAL 4U251KS - silver

Products from the same category:

Product code: 4U-251KS-15

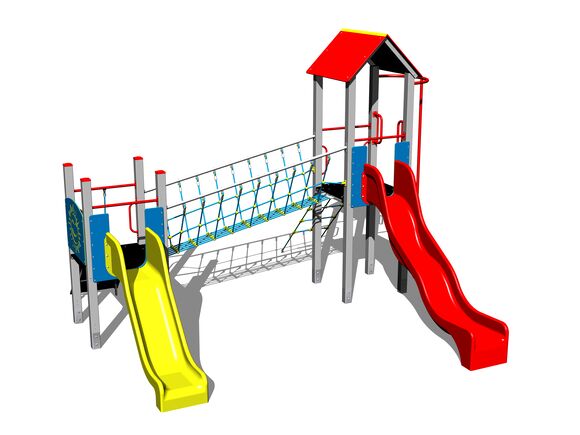

2x tower, 2x slide, A-shaped roof, barrier from HDPE, sloping net access, sloping ramp with the rope and HDPE steps, fire pole, rope bridge. More information

Ask

Choose the color option

UNIVERSAL 4U251KW - brown

Technical specifications

Product code: 4U-251KS-15
Weight: 540.43 kg
Recommended age: 3-15 years
Free fall height: 1,5 m
Load capacity: 918 kg
Maximum number of users: 17
Measurements: 4.97 x 4.9 x 3.63 m
Required area for assembly: 8.5 x 8.5 m
Fall damping surface: Rubber or gravel
68 m2
The support structure of the tower unit is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life or duplex powder coated with coat curing according to RAL to prevent corrosion. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.

The slides are made from fibreglass. The surfaces of the slides, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The climbing net, rope bridge and the ropes are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic or aluminium joints. The platforms and the ramp are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). The roof is made from HPL (High-pressure laminate, which is characterised by high colour stability, UV resistance and water resistance). All fastening material is galvanized or stainless steel.
